GGD AC Low Voltage Distribution Cabinet for Industrial Power
Type Designation
| 1 | Power Cabinet |
| 2 | Fixed installation and wiring of electrical components |
| 3 | AC Low-Voltage Distribution Cabinet |
| 4 | Design No.1:Breaking Capacity 15kA Design No.2:Breaking Capacity 30kA Design No.3:Breaking Capacity 50kA |
| 5 | Main Circuit Scheme Code |
| 6 | Auxiliary Circuit Scheme Code |
Electrical performance
| Model | Rated Voltage (V) | Rated Current (A) | Rated Short-Circuit Breaking Current (kA) | Rated Short-Time Withstand Current(1s )(kA) | Rated Peak Withstand Current (kA) | |
| GGD1 | 380 | A | 1000 | 15 | 15 | 30 |
| B | 600(630) | |||||
| C | 400 | |||||
| GGD2 | 380 | A | 1500(1600) | 30 | 30 | 63 |
| B | 1000 | |||||
| C | 600 | |||||
| GGD3 | 380 | A | 3150 | 50 | 50 | 105 |
| B | 2500 | |||||
| C | 2000 | |||||
1. Main Circuits: GGD cabinets provide 129 circuit schemes (298 specs) for ≤3150A systems, including reactive compensation options.
2. Auxiliary Circuits: Features dual power schemes with LMZ3D current transformers for relay protection.
3. Busbars: Uses aluminum (≤1500A) or copper busbars (>1500A) with tin-plated joints.
4. Components: Combines standard parts with specialized ZMJ busbar clamps and HD13BX knife switches.

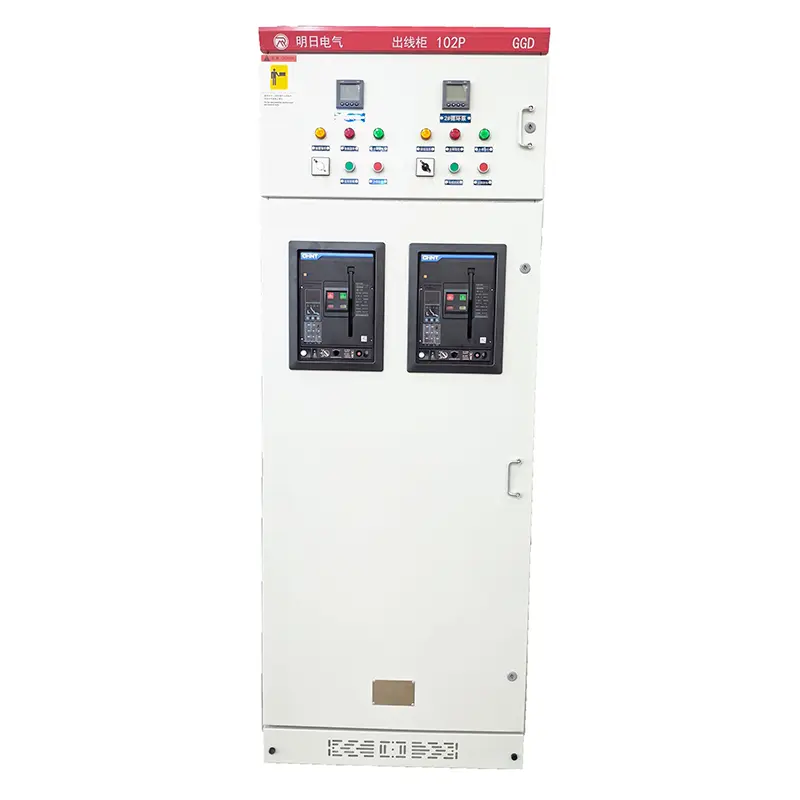

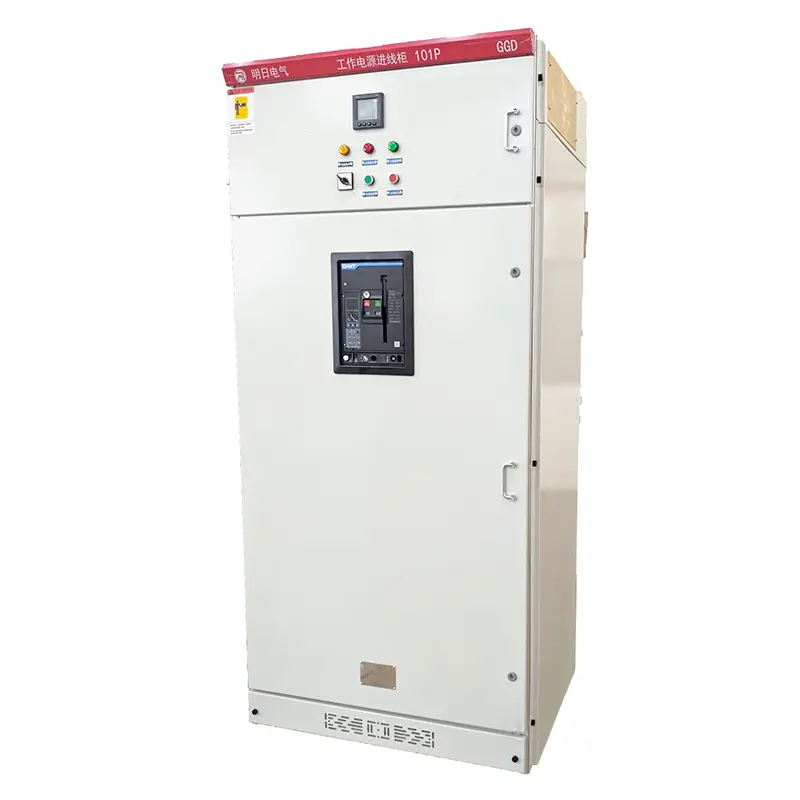

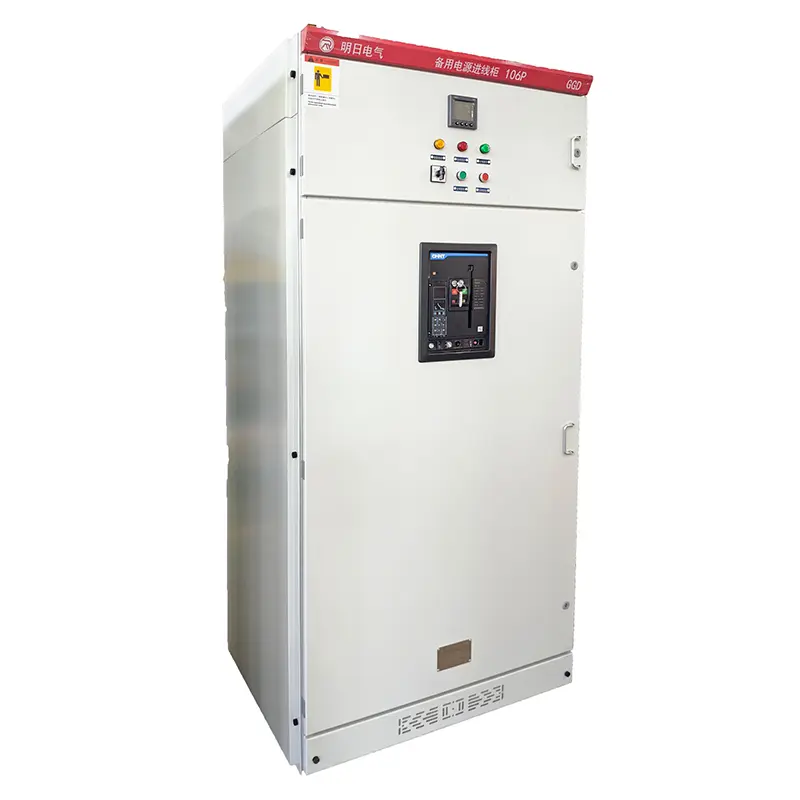

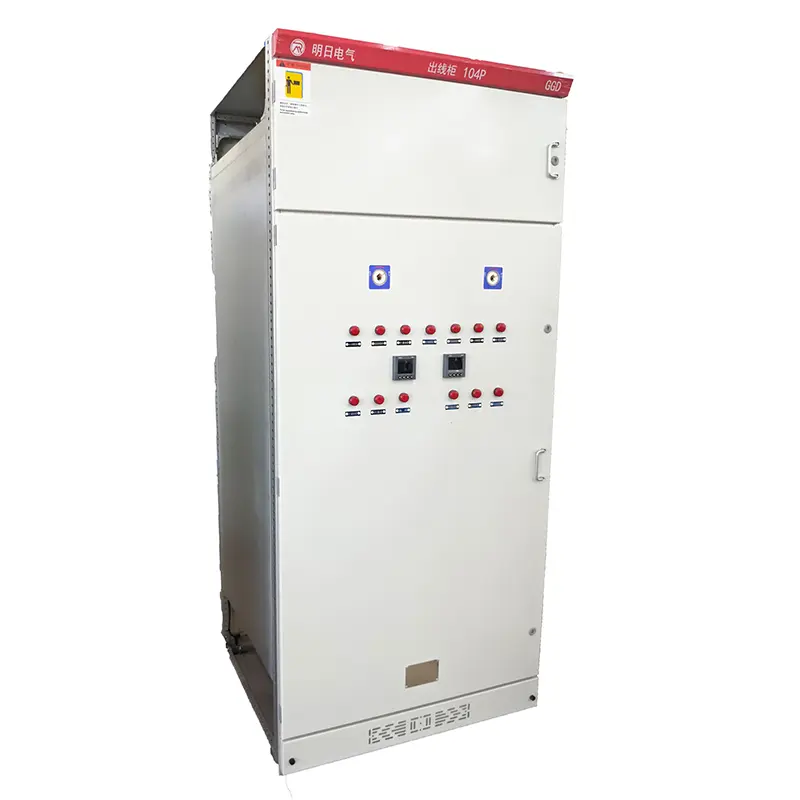

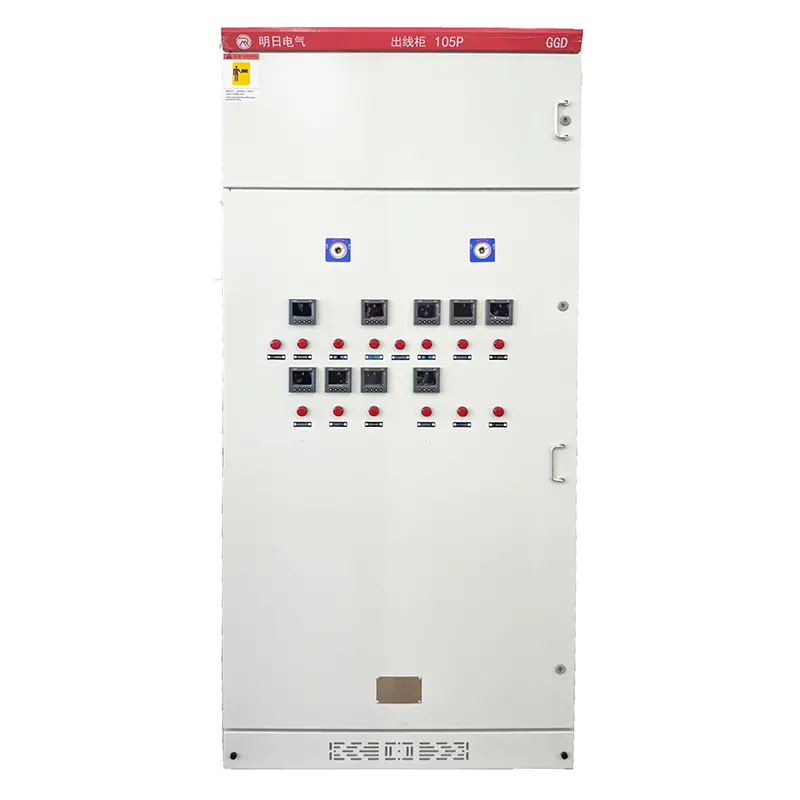

product Display

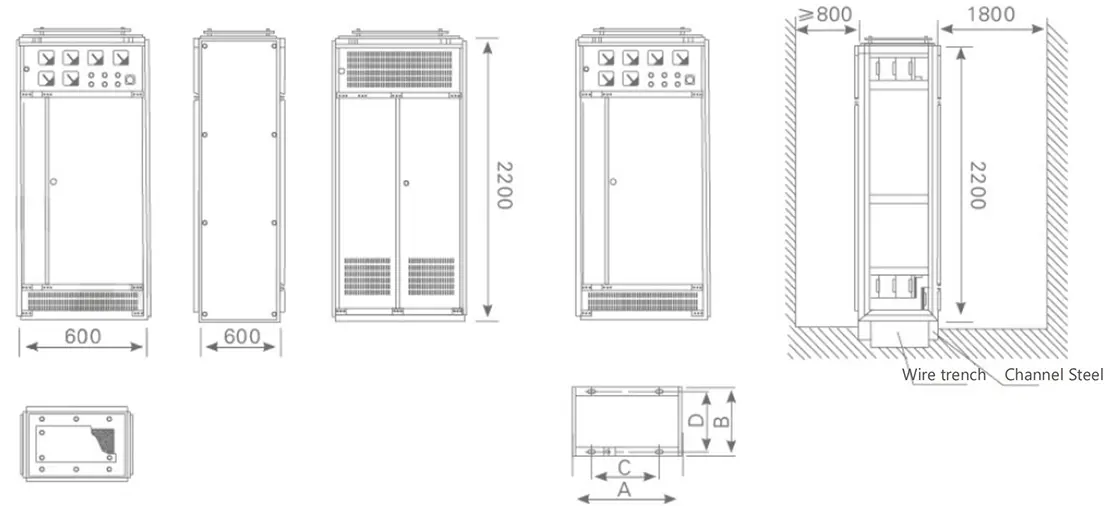

Outline and Installation Dimensions
| Product code | A | B | C | D |
| GGD06 | 600 | 600 | 450 | 556 |
| GGD06A | 600 | 800 | 450 | 756 |
| GGD08 | 800 | 600 | 650 | 556 |
| GGD08A | 800 | 800 | 650 | 756 |
| GGD10A | 1000 | 600 | 850 | 556 |
| GGD10A | 1000 | 800 | 850 | 756 |
| GGD12 | 1200 | 800 | 1050 | 756 |
Ordering Notice
Product operating site and special requirements:
1. Provide product ordering drawings, which should include wiring diagrams and indicate transformer capacity, main component model specifications, distribution branch circuits, and capacity
2. When it is necessary to configure electric energy metering and reactive power automatic compensation devices, the requirements for the configuration of the metering meter and transformer should be provided, and the capacity of the compensation capacitor should be indicated
3. Specify the requirements for surface treatment of the product
