01

HGL 3/4P Load Isolation Switch

The HGL  Load Isolation Switch provides reliable circuit isolation for  systems, supporting 63A-3150A loads with 750-1000V insulation and 6-12kV impulse withstand. Designed for industrial applications, this isolation switch operates at AC400-660V/50Hz across AC-21/22/23 utilization categories, featuring 10Ie making capacity and short-time withstand currents up to 50kA. With 5000-cycle mechanical endurance and compact 3P/4P designs (0.32-49kg), the HGL  switch ensures safe maintenance and load control. Its robust construction includes 3000-3500V dielectric strength and low operating torque (3.5-60N·m), making it ideal for renewable energy and power distribution systems.

    Contact us
    product details

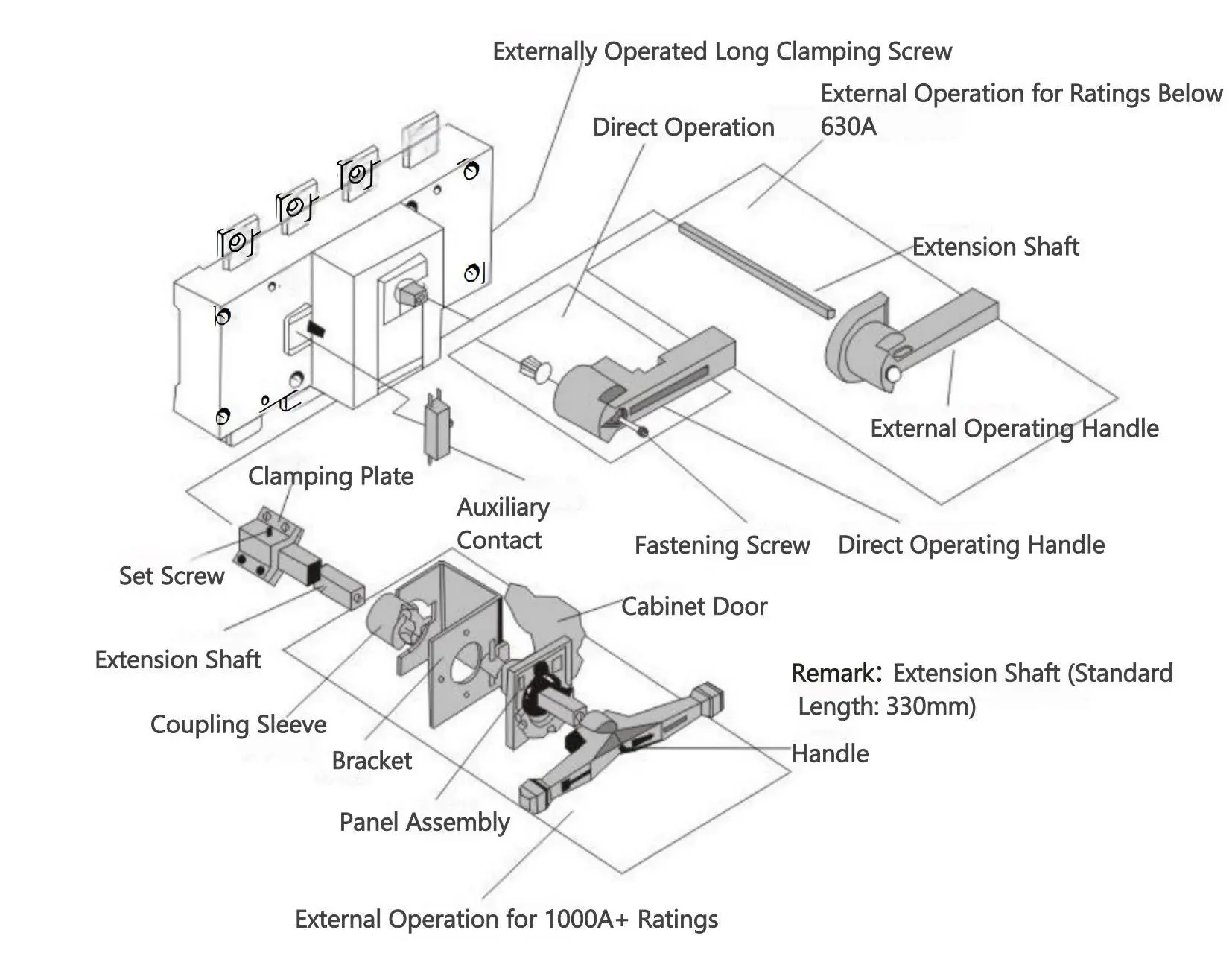

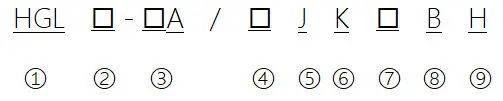

    Type Designation

    HGL-1HGL-Load-Isolation-Switch-5
    1 Rear operation (omit if not required).
    2 Rear wiring (omit for front wiring).
    3 Auxiliary contact function code (see table),omit if not required.
    4 Direct viewing of contact window (omit if not required).
    5 External operation (omit for internal operation).
    6 Number of poles: 3-pole,4-pole (3-pole+ switchable neutral pole).
    7 Rated current
    8 C Side Operation - Disconnector,Z Transfer - Disconnector
    9 Disconnector designation
    1NO+1NC 11 NO+NC
    2NO+2NC 22 2NO+2NC

    Selection example: Disconnector with switchable neutral pole, rated current 630A, externally operated (Model: HGLZ-630A/4J)

    Technical Parameters

    Conventional Free-air Thermal Current Ith (A) 63A 100A 160A 250A  400A 630A 1000A 1250A 1600A 2000A 2500A 3150A
    Rated Insulation Voltage (Ui) 750V 800V 1000V
    Dielectric Strength 3000V 3500V
    Rated Impulse Withstand Voltage (Uimp) 6kV 8kV 12kV
    Rated Operational Voltage (Ue) AC400、600V
    Rated Frequency 50Hz
    Utilization Category AC-21、22、23
    Rated Operational Current Ie(A) AC400V AC-21 63 63 160 250 400 630 1000 1250 1600 2000 2500 3150
    AC-22 63 100 160 250 400 630 1000 1250 1600 2000 2500 3150
    AC-23 50 80 160 250 400 630 800 1000 1250 1250 2000 2500
    AC660V AC-21 63 100 160 250 400 630 1000 1250 1600 2000 2500 3150
    AC-22 63 80 100 200 315 400 630 630 800 1000 1000 1250
    AC-23 40 63 63 125 200 250 250 400 500 / / /
    Rated Making Capacity (A) 10le
    Rated Breaking Capacity (A) 8le
    Rated Short-circuit Making Capacity Icm(kA) 1.7 1.7 12 17 30 40 70 70
    Rated Short-time Withstand Current Is Icw(kA） 3 3 10 12 20 25 50 50
    Mechanical Endurance (operations) 5000 5000 5000 3000 2000 1000
    Electrical Endurance (operations) 1000 1000 1000 600 300 /
    Operating Torque (N·m) 3.5 3.5 6.5 10 15 15 27 60
    Weight (kg) (excluding handle) 3-Pole 0.32 0.39 0.88 1.6 3.8 4.2 10.5 10.5 16 31 31 42
    4-Pole 0.34 0.41 1.1 2 4.6 5 13 13 20 40 40 49

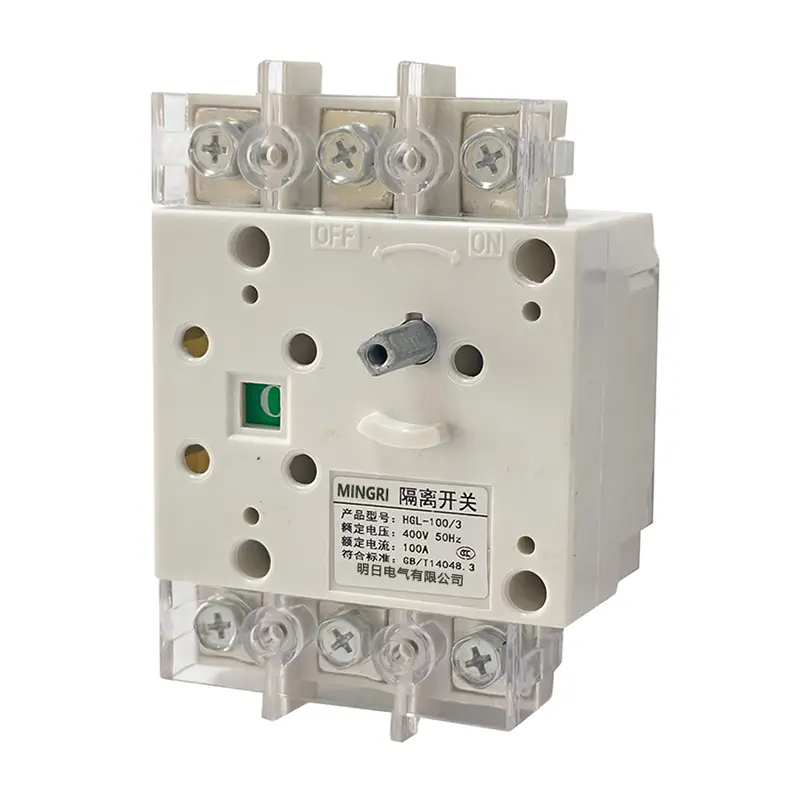

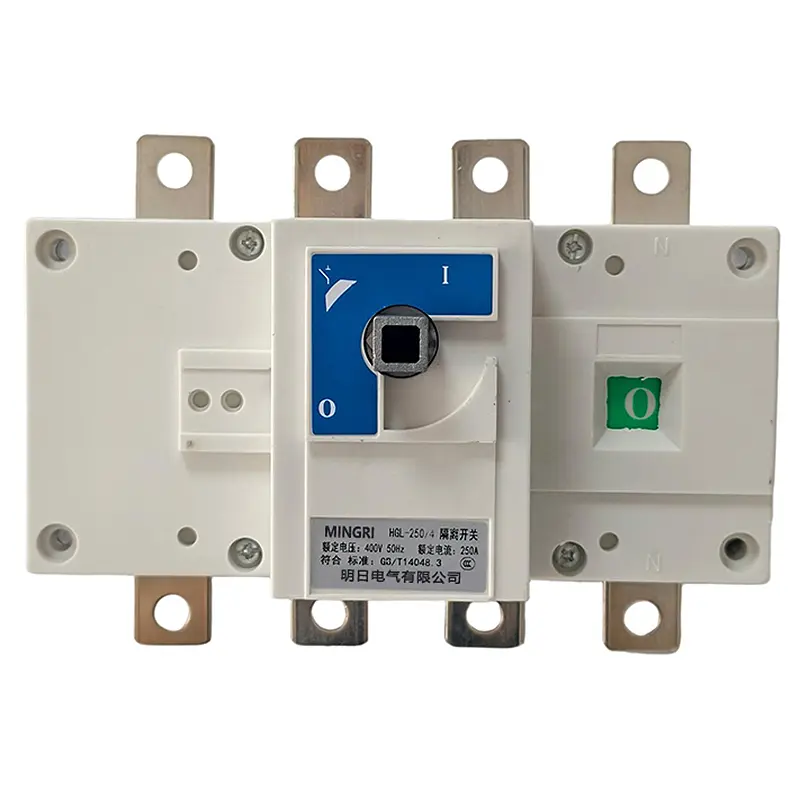

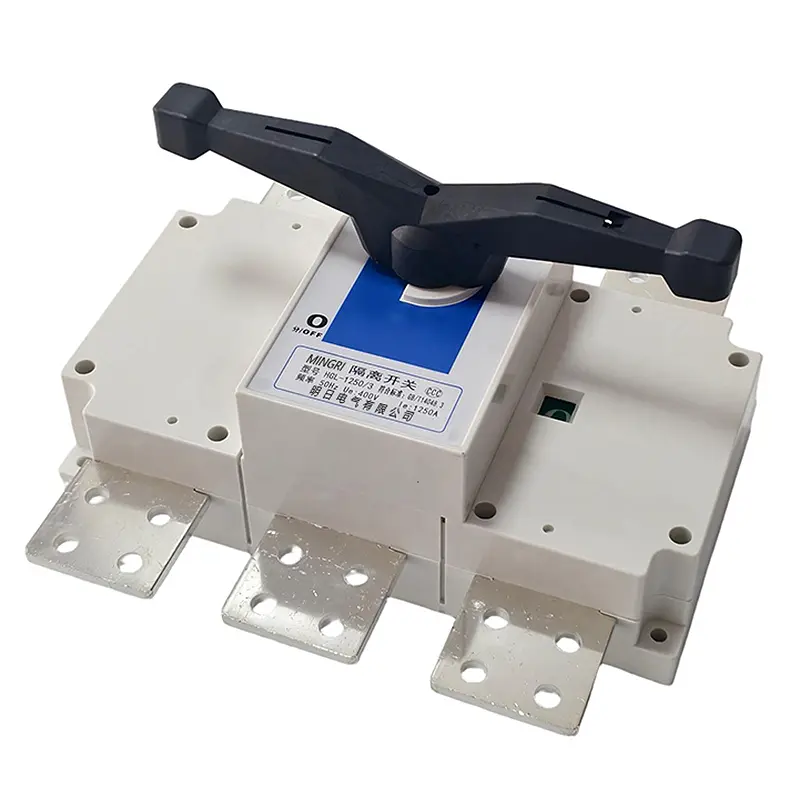

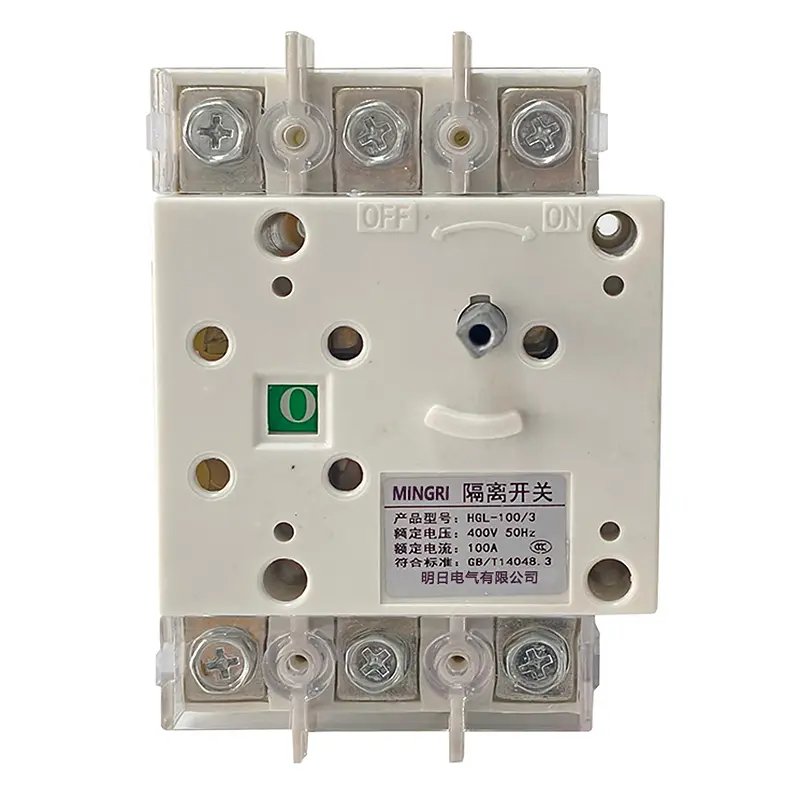

     product Display

    HGL-Load-Isolation-Switch-(1)

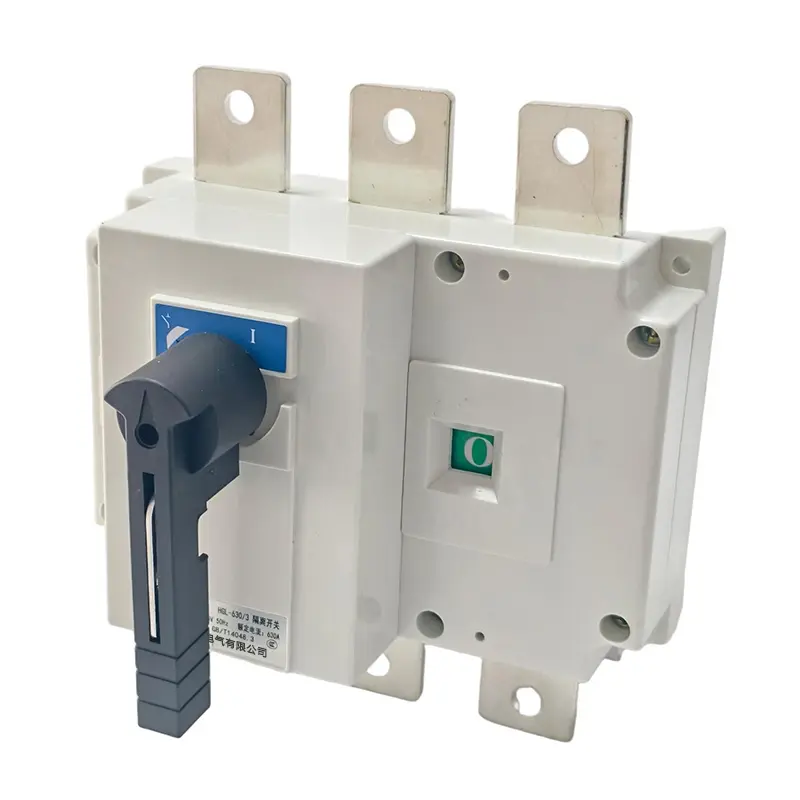

    HGL-Load-Isolation-Switch-(2)

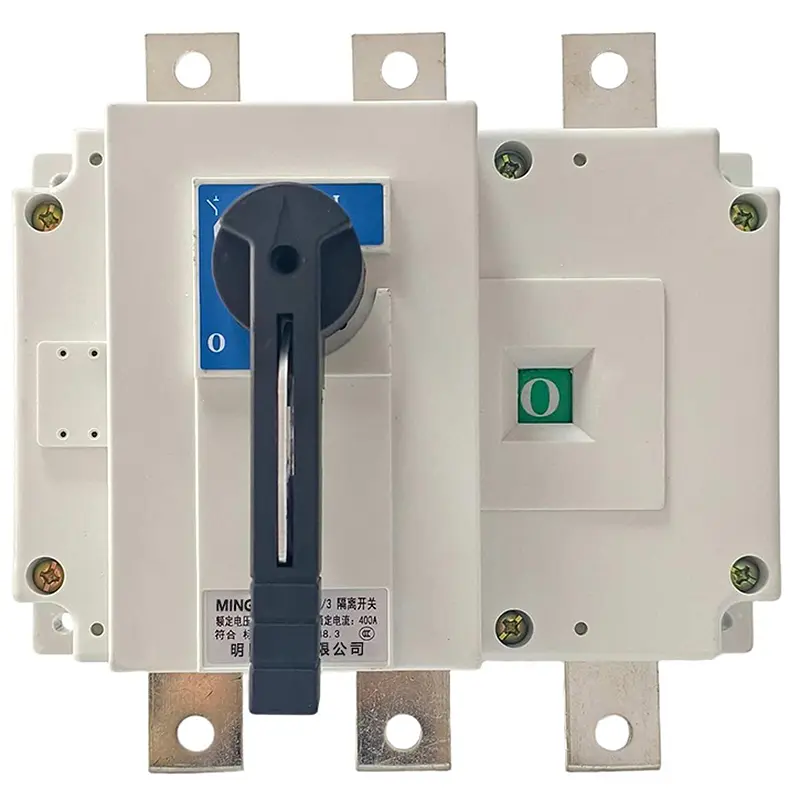

    HGL-Load-Isolation-Switch-(3)

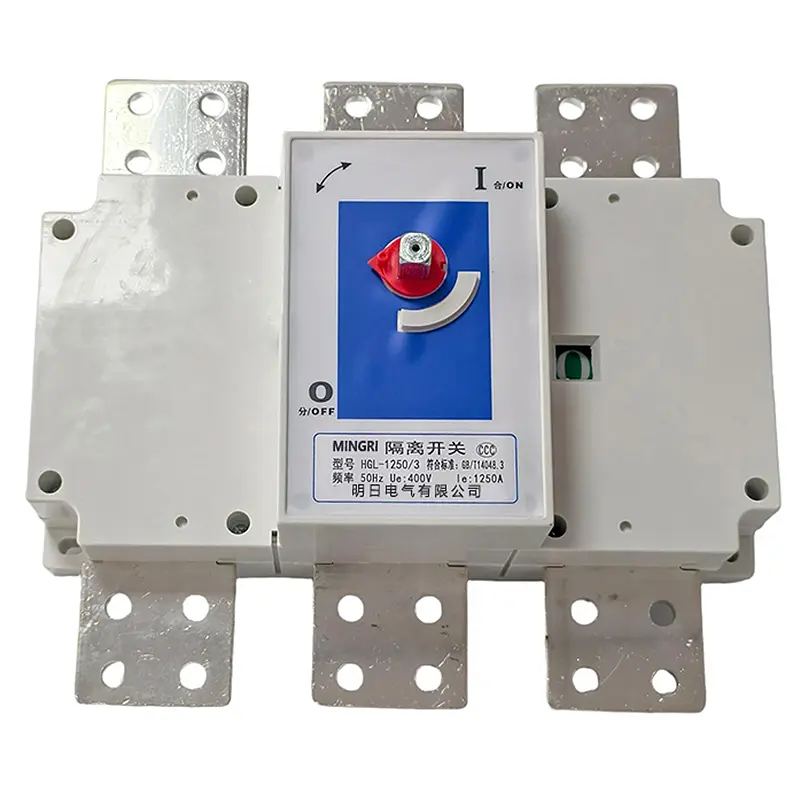

    HGL-Load-Isolation-Switch-(4)

    Outline and Installation Dimensions

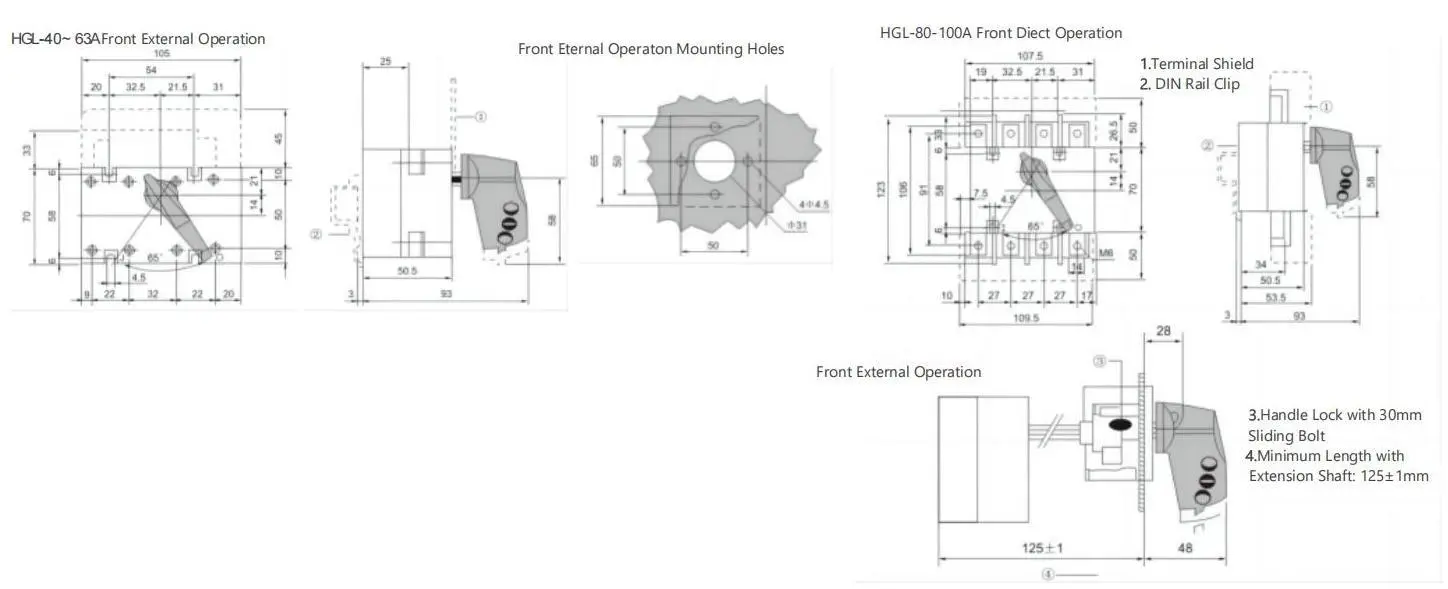

    HGL-63~100A Series Disconnector Outline and Installation Dimensions

    HGL-4

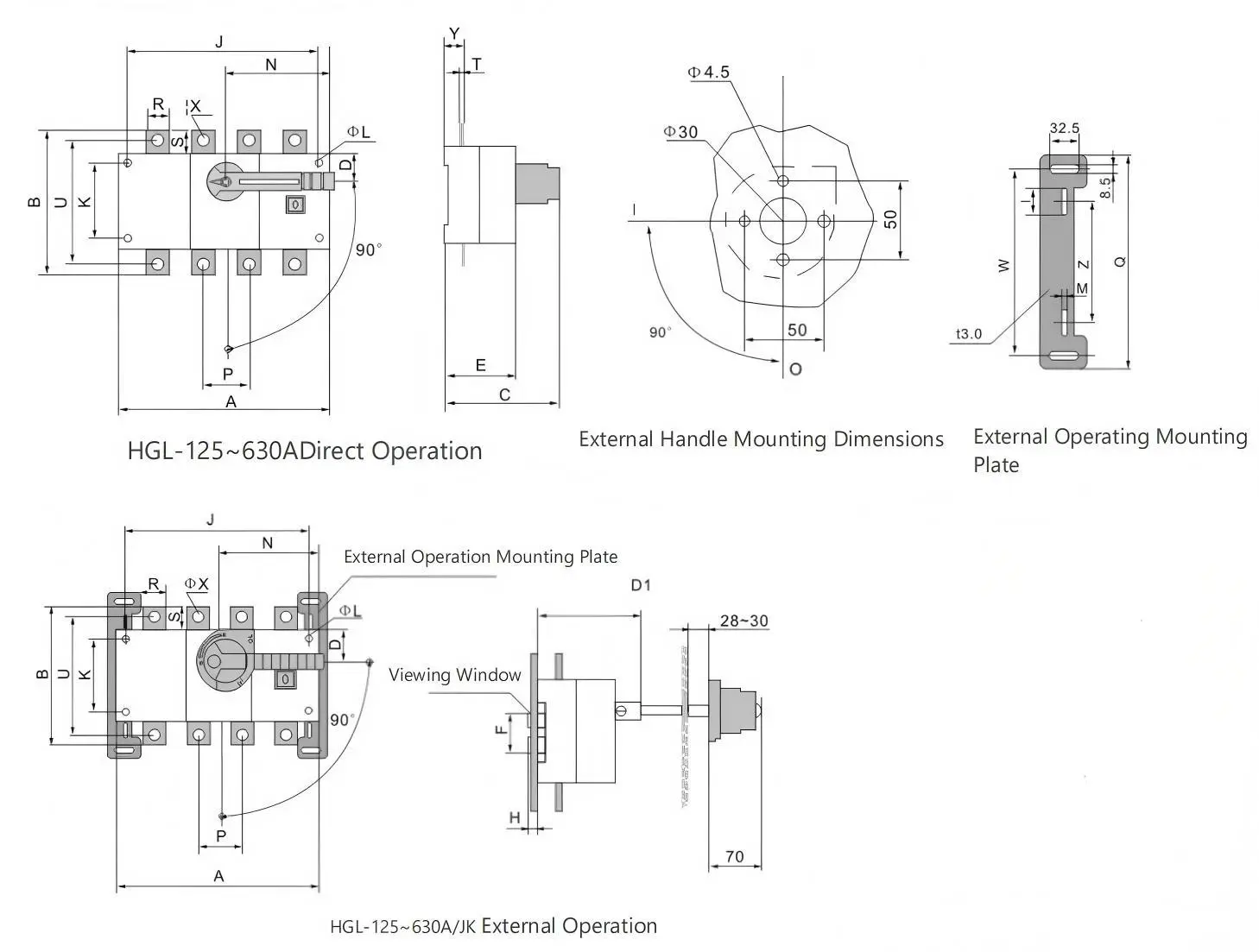

    HGL-125~630A Series Disconnector Outline and Installation Dimensions

    HGL-5
    Specification Mounting Plate Dimensions
    L M Z   W Q
    HGL-125A 55 5.5 85 190 218
    HGL-160A 55 5.5 85 190 218
    HGL-200A 55 5.5 85 190 218
    HGL-250A 55 5.5 85 190 218
    HGL-315A 60 6.5 130 240 270
    HGL-400A 60 6.5 130 240 270
    HGL-500A 60 6.5 130 240 270
    HGL-630A 60 6.5 130 240 270
    Specification Outline and Mounting Dimensions
    A B C D D1 E AL J K N P R S T U AX Y F H
    HGL-125A/3 140 135 120 27 93 73 5.5 120 65 85 36 20 25 3.5 115 9 24 49 10
    HGL-125A/4 170 135 120 27 93 73 5.5 150 65 85 36 20 25 3.5 115 9 24 49 10
    HGL-160A/3 140 135 120 27 93 73 5.5 120 65 85 36 20 25 3.5 115 9 24 49 10
    HGL-160A/4 170 135 120 27 93 73 5.5 150 65 85 36 20 25 3.5 115 9 24 49 10
    HGL-200A/3 180 165 140 35 103 86   7 160 90 115 50 25 28 3.5 140 11 25 79 15
    HGL-200A/4 230 165 145 35 103 86   7 210 90 115 50 25 28 3.5 140 11 27 79 15
    HGL-250A/3 180 165 140 35 103 86   7 160 90 115 50 25 28 3.5 140 11 25 79 15
    HGL-250A/4 230 165 145 35 103 86   7 210 90 115 50 25 28 3.5 140 11 27 79 15
    HGL-315A/3 230 234 170 50 134 116   7 210 140 145 65 32 37 5 205 11 37 94 20
    HGL-315A/4 290 234 170 50 134 116   7 270 140 145 65 32 37 5 205 11 37 94 20
    HGL-400A/3 230 234 170 50 134 116   7 210 140 145 65 32 37 5 205 11 37 94 20
    HGL-400A/4 290 234 170 50 134 116   7 270 140 145 65 32 37 5 205 11 37 94 20
    HGL-500A/3 230 250 170 50 134 116   7 210 140 145 65 40 45 6 215 12.5 38 94 20
    HGL-500A/4 290 250 170 50 134 116   7 270 140 145 65 40 45 6 215 12.5 38 94 20
    HGL-630A/3 230 250 170 50 134 116   7 210 140 145 65 40 45 6 215 12.5 38 94 20
    HGL-630A/4 290 250 170 50 134 116   7 270 140 145 65 40 45 6 215 12.5 38 94 20

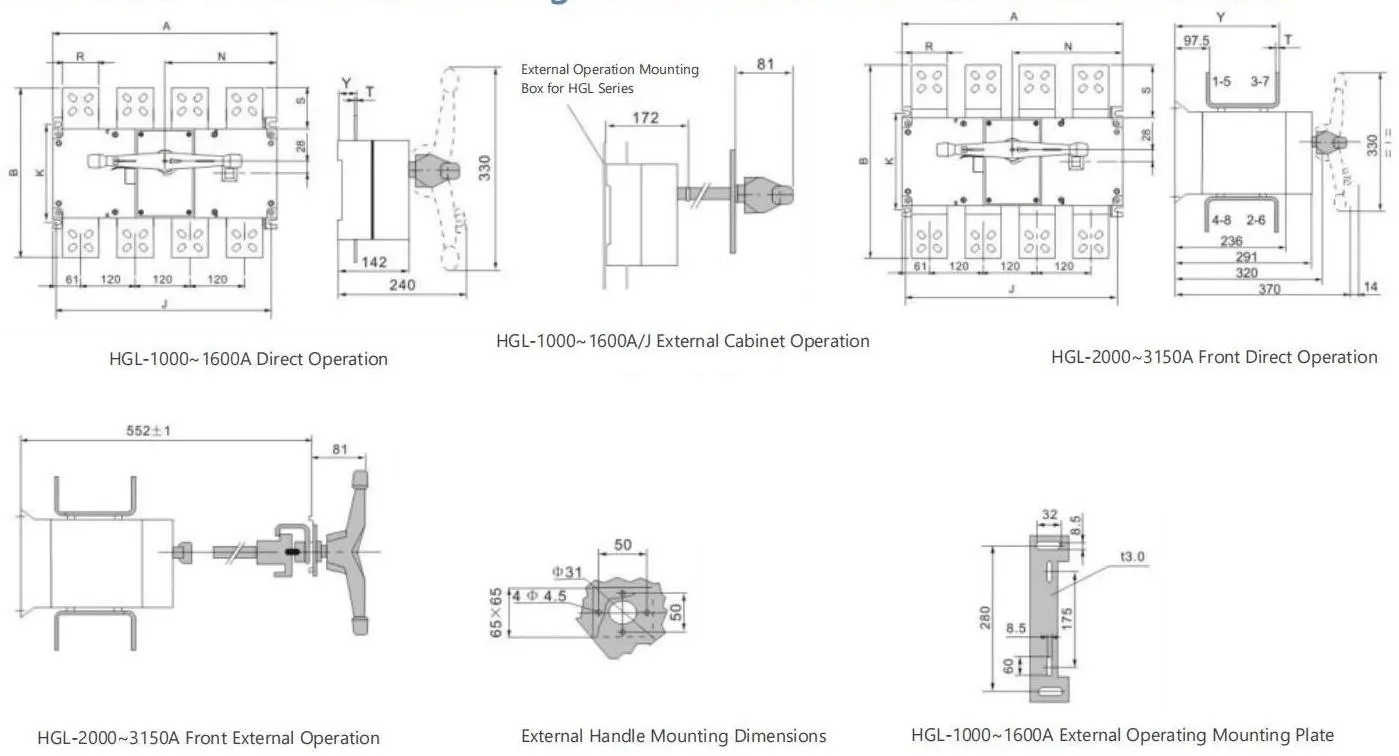

    HGL-1000~3150A Series Disconnector Outline and Installation Dimensions

    HGL-8

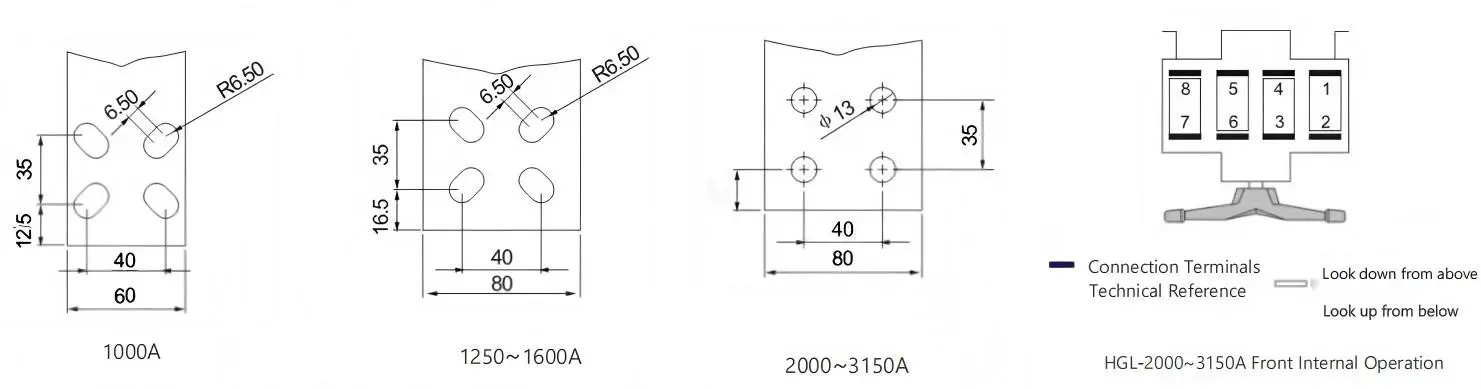

    Terminal Blocks Technical Reference

    HGL-9
    Specifications Overall Dimensions and Installation Dimensions
    A B J K N R S T Y
    HGL-1000A/3 378 328 352 175 185.5 60 64 8 48
    HGL-1000A/4 492 328 467 175 246 60 64 8 48
    HGL-1250A/3 378 336 352 175 185.5 80 68 8 48
    HGL-1250A/4 492 336 467 175 246 80 68 8 48
    HGL-1600A/3 378 336 352 175 185.5 80 68 10 49
    HGL-1600A/4 492 336 467 175 246 80 68 10 49
    HGL-2000A/3 379 423 352 220 185.5 80 111.5 10 210.5
    HGL-2000A/4 492 423 467 220 246 80 111.5 10 210.5
    HGL-2500A/3 378 433 352 220 185.5 80 116.5 15 215.5
    HGL-2500A/4 492 433 467 220 246 80 116.5 15 215.5
    HGL-3150A/3 378 443 352 220 185.5 80 121.5 20 220.5
    HGL-3150A/4 492 443 467 220 246 80 121.5 20 220.5
