S11-M Type 10kV Series Fully-Sealed Distribution Transformer

This product series comprises S11-M 10kV Series Fully-Sealed Distribution Transformers, designed for outdoor applications with a capacity range of 30–2500 kVA. Complying with GB standards, these Fully-Sealed Distribution Transformers feature reduced no-load losses (30% lower than S9 series), robust short-circuit resistance, and wave-type tanks for maintenance-free operation. Key specifications include adjustable voltage combinations, Dyn11/Yyn0 connection groups, and compact dimensions. Fully-Sealed Distribution Transformers are ideal for harsh environments, offering enhanced safety with pressure relief valves and gas relays. Customizable options like rectifier or mining transformers are available. Their sealed structure ensures longevity and reliability in diverse industrial settings.

product details

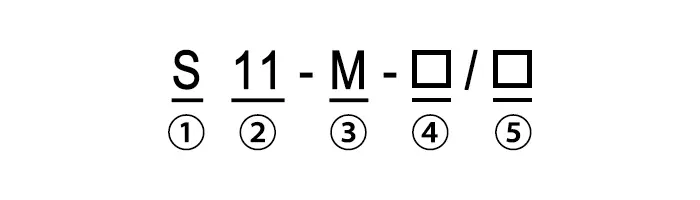

Type Designation

1	Three-phase Oil-immersed Transformer
2	Performance Level Code
3	Sealed Construction
4	Rated Capacity (kVA)
5	Voltage Class (kV)

Key Features

1. Compared to the S9 type transformer, the no-load loss of this series is reduced by approximately 30% on average.

2. The low-voltage winding uses layer or spiral structure, with high mechanical strength, balanced Ampere-Turn distribution, resulting in good short-circuit withstand capability.

3. The core and windings assembly has added positioning structures to prevent displacement during transportation. All fasteners are equipped with lock nuts to ensure they do not loosen during long-term operation, meeting the requirement for no core lifting.

4. The transformer uses a corrugated tank, eliminating the conservator. The tank cover is fully welded or bolted to the tank flange, extending the service life of the transformer oil.

5. The product surface is treated with degreasing, derusting, and phosphating before spraying with primer and topcoat, meeting special requirements for metallurgical, petrochemical systems, and damp, polluted areas.

6. Selected components are used, featuring a fully sealed transformer tank. Standard accessories include a pressure relief device, signaling thermometer, gas relay, etc., ensuring safe transformer operation.

7. This series of products features an attractive appearance and compact size, reducing the installation footprint. It is an ideal, high-quality, maintenance-free product.

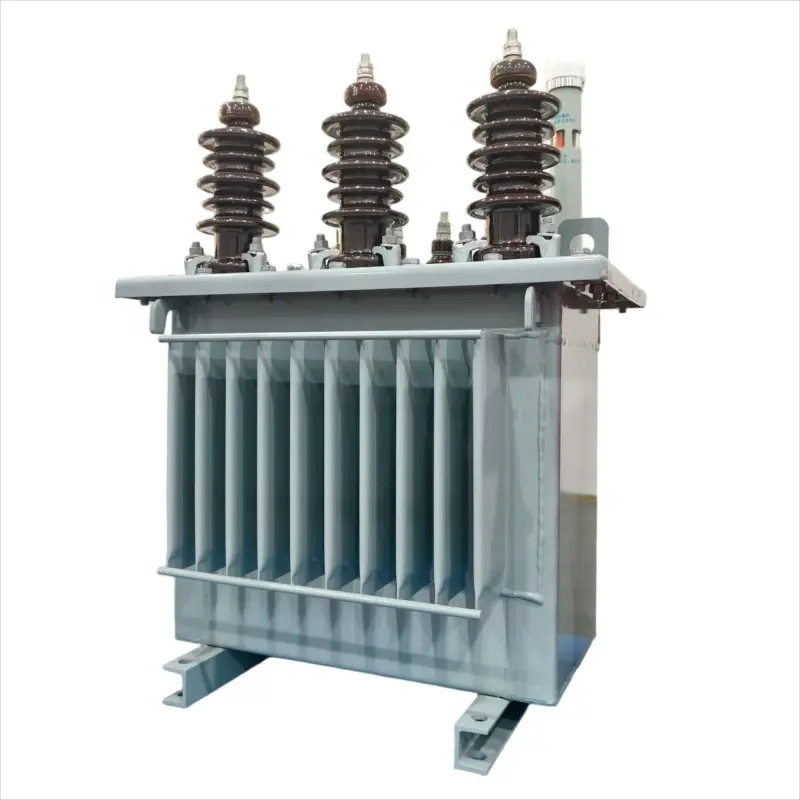

product Display

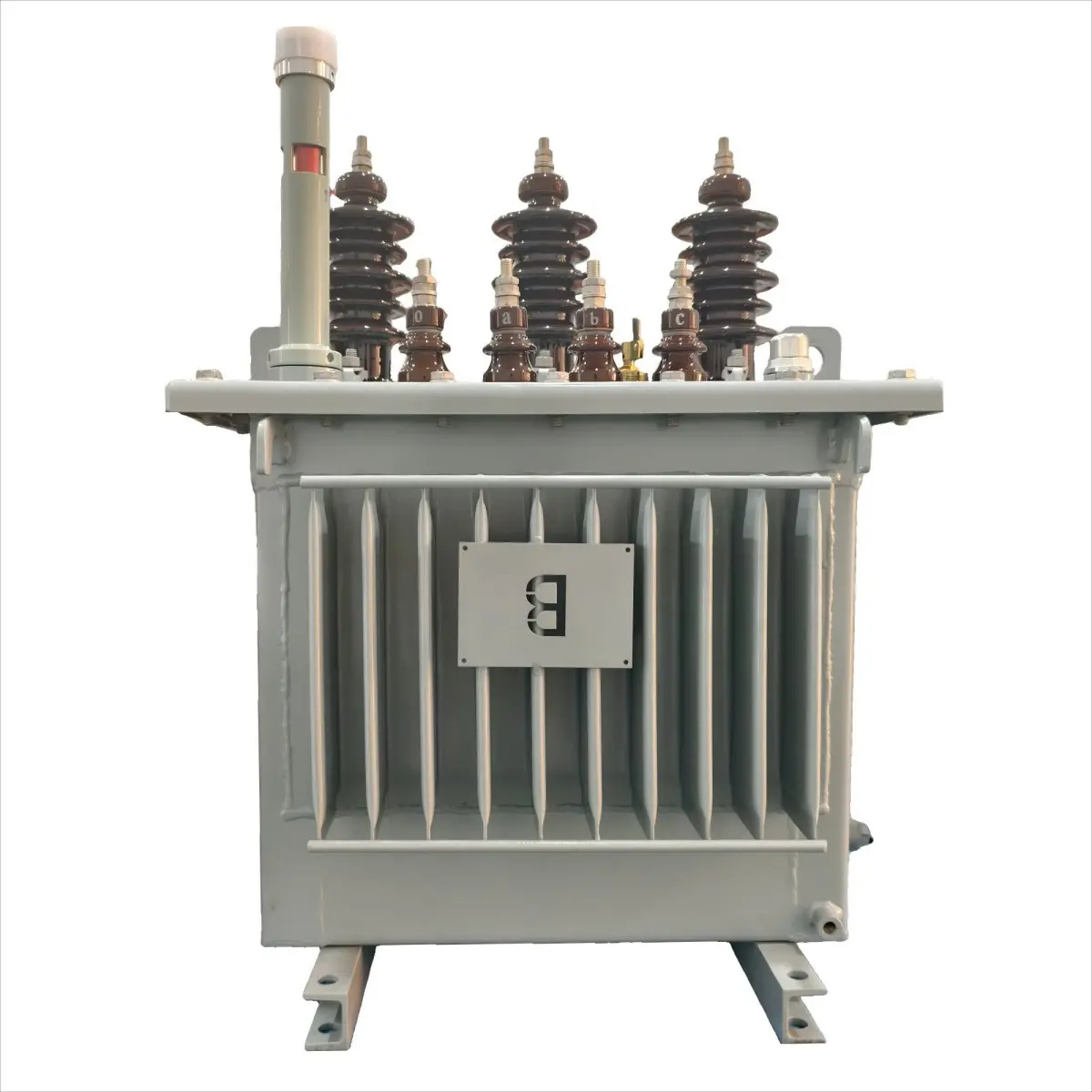

10kV Hermetically Sealed Distribution Transformer (2)

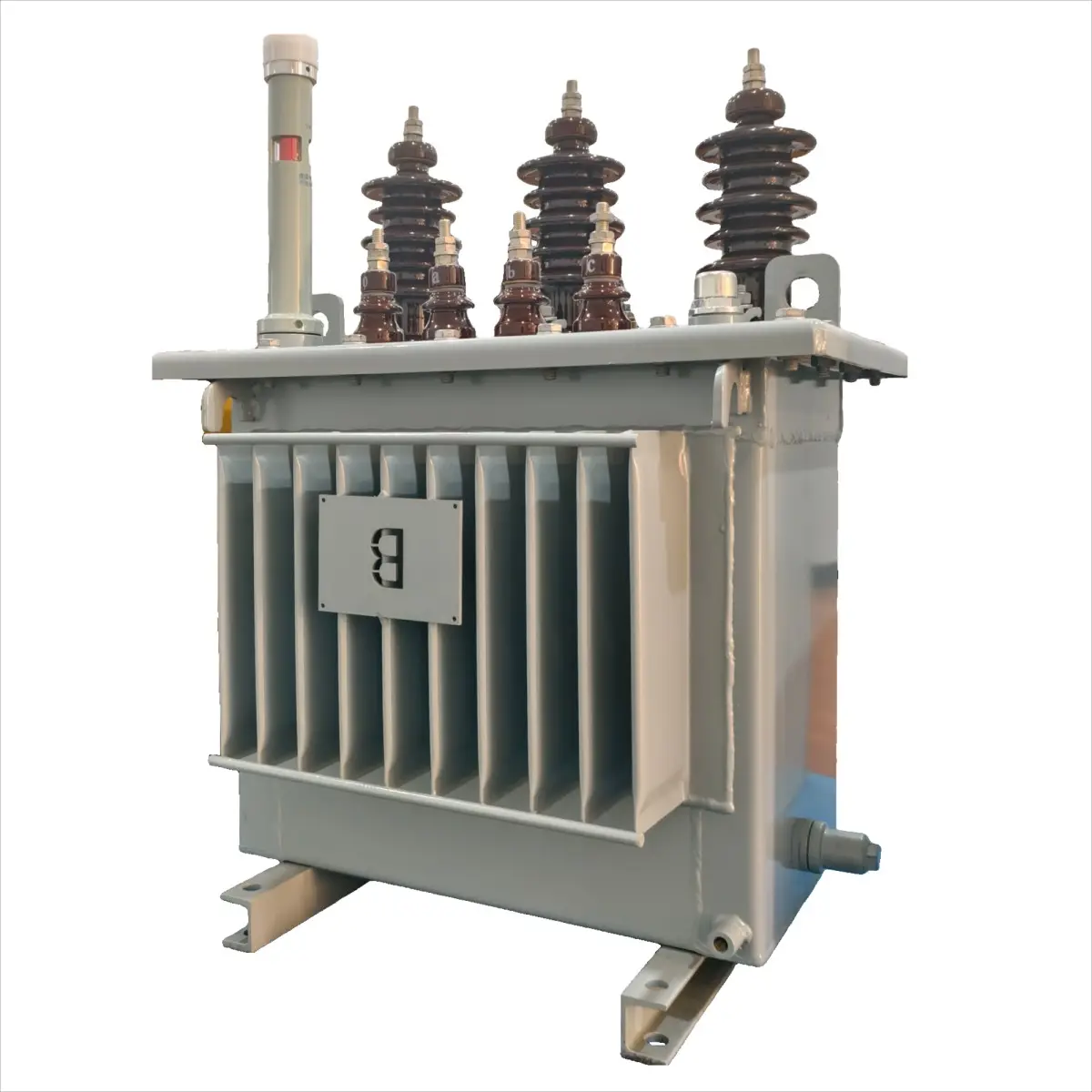

10kV Hermetically Sealed Distribution Transformer (1)

Technical Parameters

S11-M Type 10kV Series Fully-Sealed Distribution Transformer Technical Parameters

Rated Capacity (kVA)	Voltage Combination			Vector Group Symbol	No-load Loss (W)	Load Loss (W)	Short-circuit Impedance (%)	No-load Current (%)	Weight(kg)		Overall Dimensions(mm)	Rail Distance (mm)
Rated Capacity (kVA)	High Voltage (kV)	Tapping Range (%)	Low Voltage (kV)	Vector Group Symbol	No-load Loss (W)	Load Loss (W)	Short-circuit Impedance (%)	No-load Current (%)	Oil Weight	Total Weight	Length(L)×Width(W)×Height(H)	Rail Distance (mm)
30	6 6.3 6.6 10 10.5 11	±5 ±2×2.5	0.4	Yyn0 Or Dyn11	100	600	4.0	1.8	80	300	830×590×980	400×400
50					130	870		1.7	100	360	880×600×1010	400×400
63					150	1040		1.6	110	420	910×650×1040	400×400
80					180	1250		1.5	125	480	930×700×1080	550×550
100					200	1500		1.4	135	550	940×710×1130	550×550
125					240	1800		1.3	145	650	950×720×1150	550×550
160					280	2200		1.2	155	750	1000×740×1220	550×550
200					340	2600		1.1	180	880	1040×750×1250	550×550
250					400	3050		1.0	215	1050	1340×750×1250	550×550
315					480	3650		0.9	240	1220	1350×780×1330	660×660
400					570	4300		0.8	300	1420	1460×840×1360	660×660
500					680	5150		0.8	340	1650	1480×860×1410	660×660
630					810	6200	4.5	0.7	380	2000	1570×930×1460	710×710
800					980	7500		0.7	585	2360	1700×1000×1540	820×820
1000					1150	10300		0.6	630	2720	1780×1060×1640	820×820
1250					1360	12000		0.5	650	3350	1840×1130×1690	920×820
1600					1640	14500		0.5	850	3950	1950×1180×1760	920×820
2000					1940	17200		0.4	900	4600	2050×1250×1830	1070×1070
2500					2300	20300	5.5	0.4	1000	5600	2160×1360×1870	1070×1070

Note:
1. For technical parameters, overall dimensions, and weight data of 10kV class distribution transformers with larger capacities, please inquire with the company.
2. Transformers with various voltage combinations, short-circuit impedances, and connection methods can be provided according to user requirements.
3. Special transformers, such as rectifier transformers, furnace transformers, mining transformers, on-load tap-changing transformers, and transformers with enclosed covers, etc., can be provided according to user requirements.
4. The weight and overall dimension data in the table are for reference only; changes may be made without prior notice.

Standards

◇ GB1094.1~2-1996 Power Transformers
◇ GB1094.3,5-2003 Power Transformers
◇ GB/T6451-2008 Technical parameters and requirements for three-phase oil-immersed power transformers
