SC(B)10 Type 10kV Series Resin Insulation Dry Type Power Transformer

This cast resin dry-type transformer is produced using high-quality materials, scientific formulations, advanced production and testing equipment, and strict processes. The product features high reliability and a long service life. Depending on the specific application environment, it can be equipped with enclosures of different protection levels or without an enclosure. It can serve as a replacement for oil-immersed transformers and is suitable for important or special environmental locations such as high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants, and ships.

product details

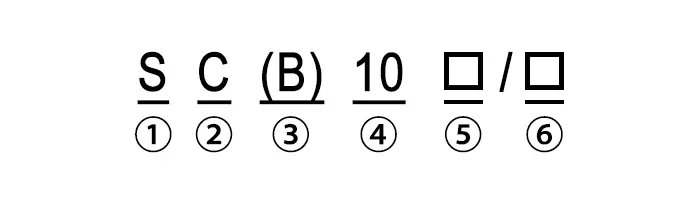

Type Designation

1	Three-phase Transformer
2	Resin Cast
3	Insulated Winding
4	Performance Level Code
5	Rated Capacity (kVA)
6	Voltage Class (kV)

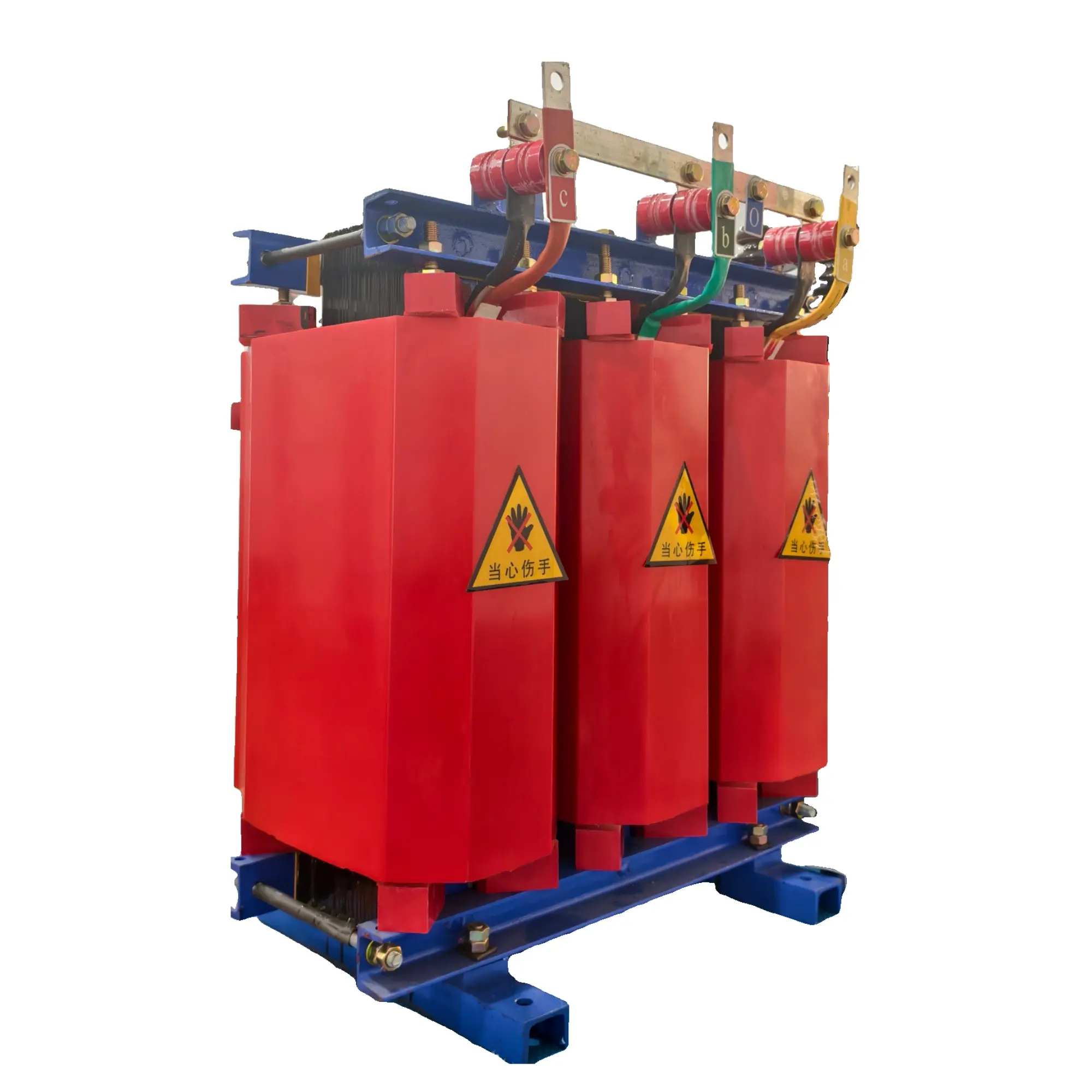

product Display

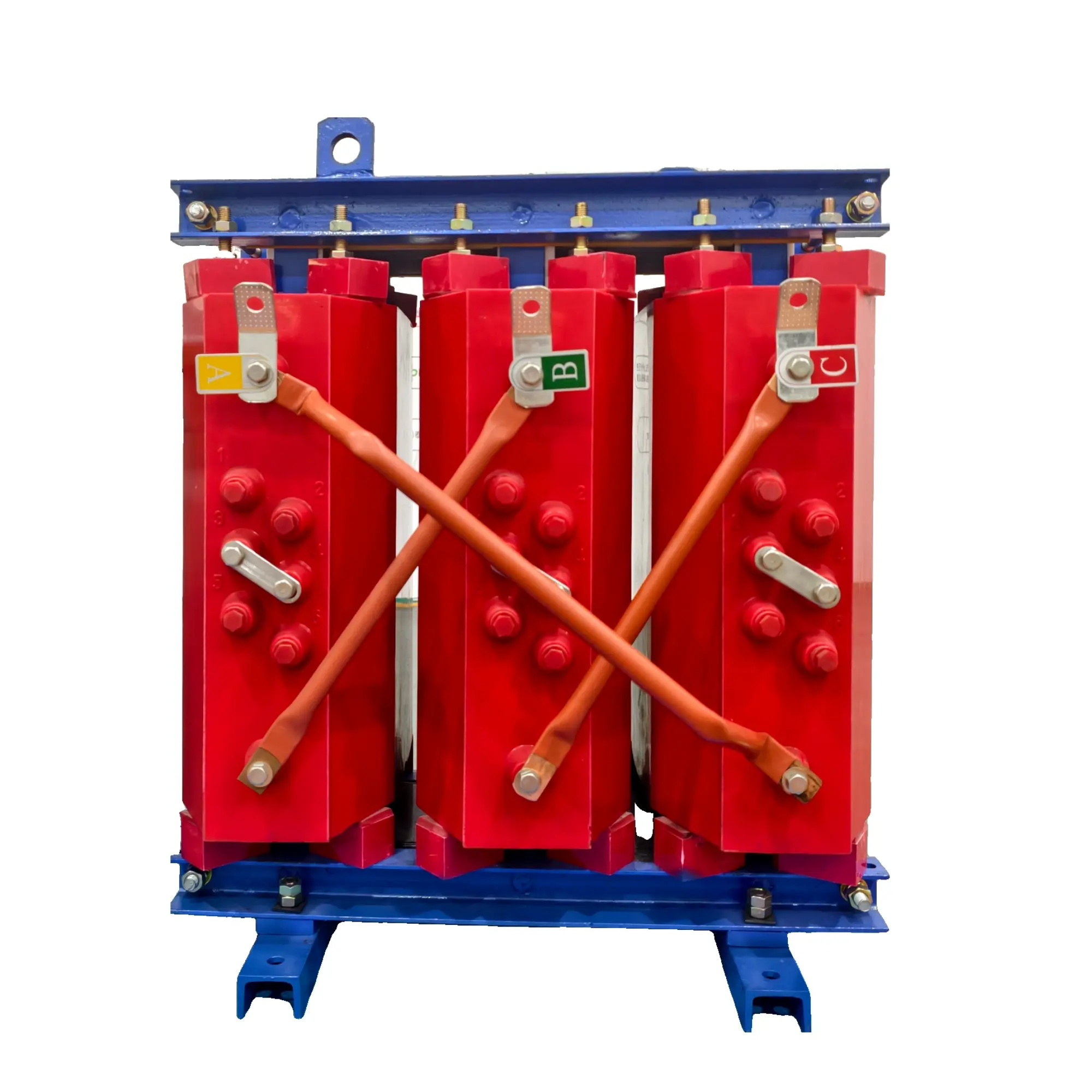

SC(B)10 10kV Dry Type Power Transformer (2)

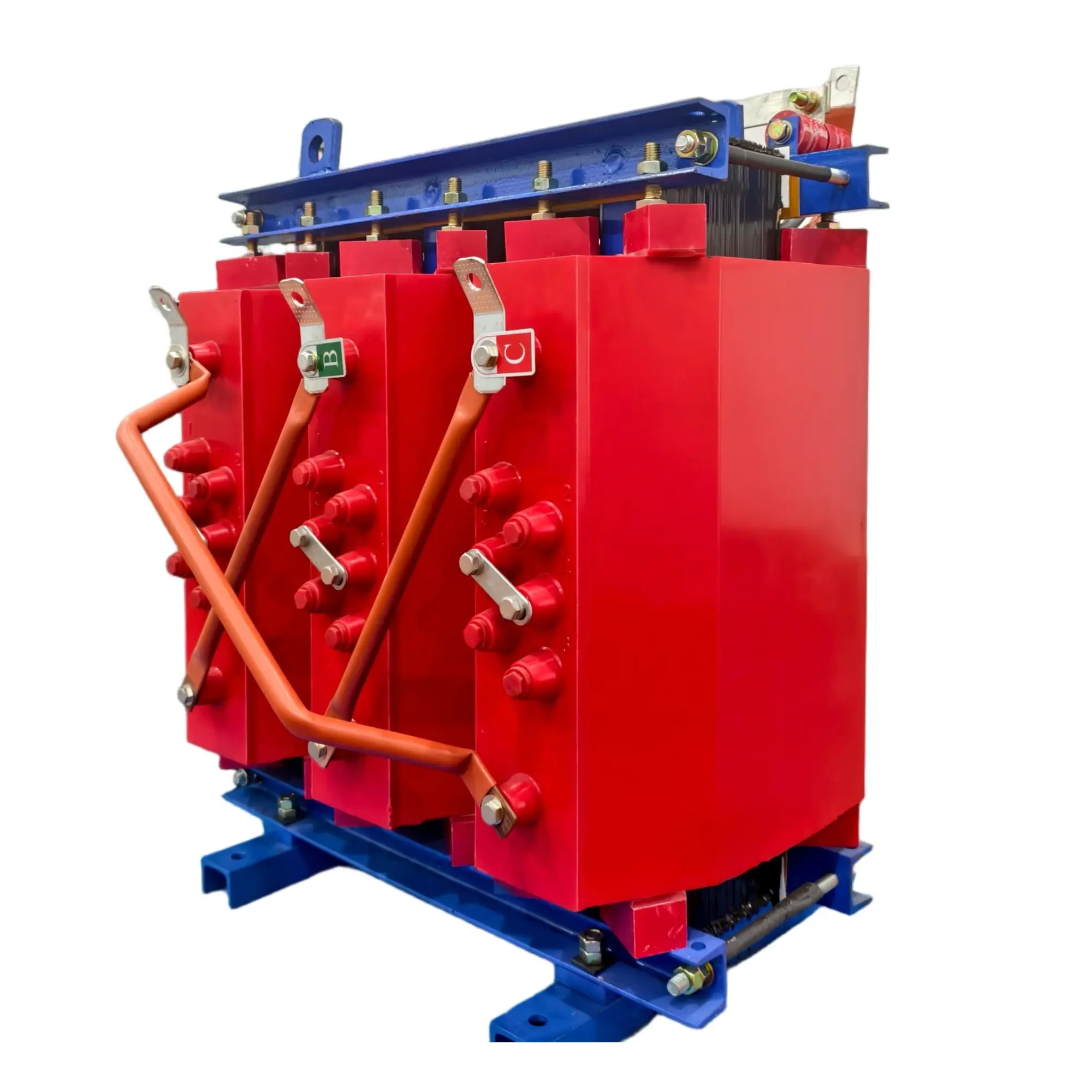

SC(B)10 10kV Dry Type Power Transformer (4)

Technical Parameters

SC(B)10 Type 10kV Series Epoxy Resin Cast Dry-Type Power Transformer Technical Parameters

Rated Capacity (kVA)	Voltage Combination			Vector Group Symbol	No-load Loss (W)	Load Loss (W)	No-load Current (%)	Short-circuit Impedance (%)	Main Unit Weight (kg)	Overall Dimensions (mm)		Rail Distance (mm)
Rated Capacity (kVA)	High Voltage (kV)	Tapping Range (%)	Low Voltage (kV)	Vector Group Symbol	No-load Loss (W)	Load Loss (W)	No-load Current (%)	Short-circuit Impedance (%)	Main Unit Weight (kg)	Length(L)×Width(W)×Height(H) (Without protective enclosure)	Length(L)×Width(W)×Height(H) (With protective enclosure)	Rail Distance (mm)
30	6 6.3 6.6 10 10.5 11	±5 or ±2×2.5	0.4	Yyn0 or Dyn11	190	710	2.4	4	380	820×600×820	-	550×550
50					270	1000	2.1		480	850×600×850	-	550×550
80					370	1380	1.8		600	950×600×950	-	550×550
100					400	1570	1.8		750	1040×600×1000	1300×1000×1300	550×550
125					470	1850	1.6		850	1080×600×1050	1300×1000×1300	550×550
160					540	2130	1.6		950	1120×770×1100	1400×1000×1400	710×660
200					620	2530	1.4		1150	1160×770×1150	1450×1100×1450	710×660
250					720	2760	1.4		1350	1220×770×1200	1500×1150×1500	710×710
315					880	3470	1.2		1600	1260×770×1250	1550×1150×1550	710×710
400					980	3990	1.2		1750	1320×770×1300	1600×1150×1600	710×710
500					1160	4880	1.2		2050	1360×820×1350	1650×1200×1650	760×710
630					1300	5960	1.0	6	2400	1450×820×1410	1800×1250×1800	760×710
800					1520	6960	1.0		2700	1480×980×1550	1800×1250×1800	920×820
1000					1770	8130	1.0		3200	1520×980×1600	1850×1250×1850	920×820
1250					2090	9690	1.0		3700	1600×980×1650	1900×1250×1900	920×820
1600					2450	11730	1.0		4500	1680×980×1700	1950×1300×1950	920×920
2000					3050	14450	0.8		4800	1760×980×1800	2000×1300×2100	920×920
2500					3600	17170	0.8		5300	1900×980×1900	2200×1400×2200	1020×920

Note:
1. For on-load tap-changing SCZ(B)10 series transformers, only the following data are adjusted: weight increases by 100kg, dimension 'a' increases by 650mm, and dimension 'b' increases by 750mm due to the on-load switch arrangement on the side of the transformer.
2. The high voltage side of on-load tap-changing transformers can provide a tapping range of 4x2.5%.
3. The weight and overall dimension data in the table are for reference only; changes may be made without prior notice.

Standard specification

1. Applicable specification: IC 60076
2. KVA: up to 4000 KVA
3. Primary voltage: up to 35kV
4. Secondary voltage: 380/400/415V or customized
5. Temperature rise: 90-100 °C
6. Cooling method: ONAN
7. Frequency: 50Hz/60Hz
8. Taps voltage: 5 steps 2*2.5% or customized
9. vector group: Dyn5,Dyn11,Yyn0
