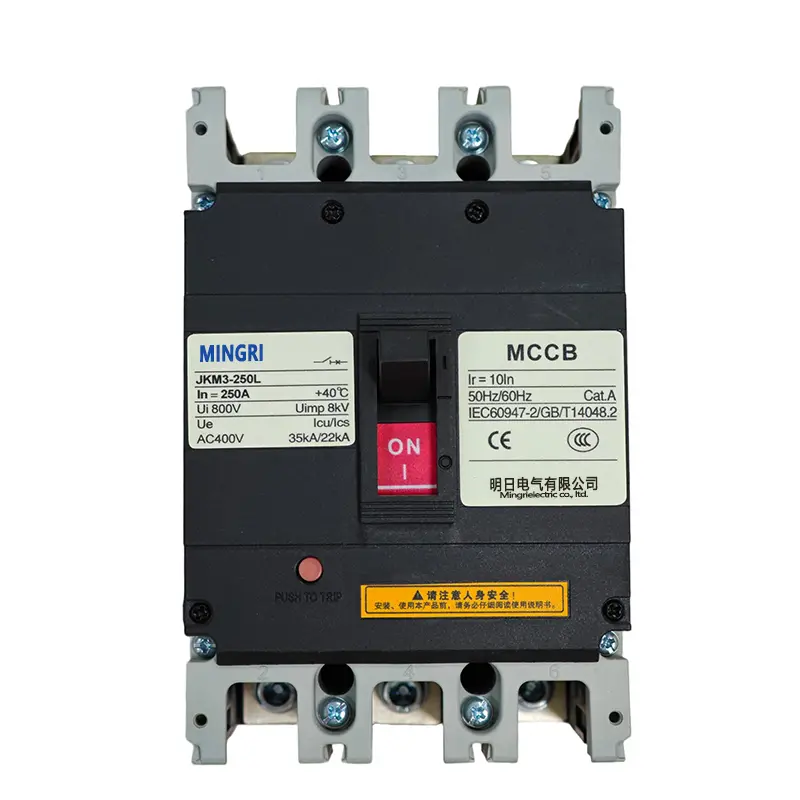

SJKM3 MCCB.jpg

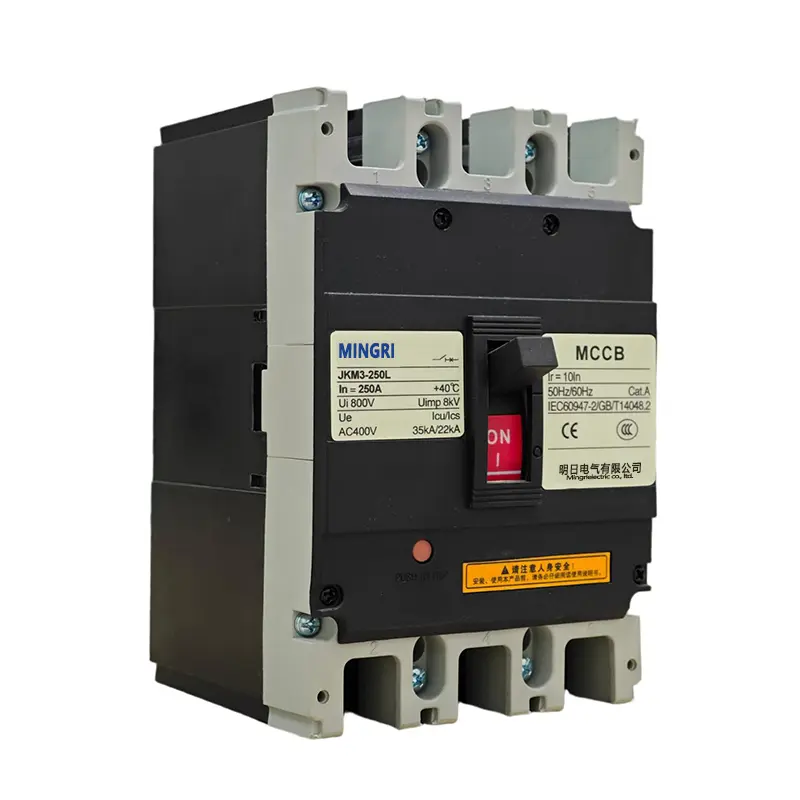

SJKM3 MCCB Circuit Breaker.jpg

SJKM3 MCCB Moulded Case Circuit Breaker with Overload Protection

The SJKM3 MCCB Moulded Case Circuit Breaker delivers advanced circuit protection for 50/60Hz systems up to 690V and 1250A. Combining overload, short-circuit, and undervoltage protection, this MCCB features 800V insulation, compact size, and high-breaking capacity with minimal arc flash. Ideal for power distribution and motor protection (infrequent starts), the SJKM3 MCCB supports both vertical/horizontal installation while complying with IEC60947-2 & GB14048.2. Its innovative design ensures reliable performance in industrial/commercial applications, offering superior fault protection with space-saving advantages. Its innovative trip unit ensures precise fault detection while maintaining stable operation under variable load conditions.

    Contact us
    product details

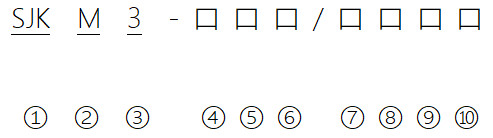

    Type Designation

    SJKM3-MCCB-Moulded-Case-Circuit-Breaker-3
    1 Manufacturer Identification Code
    2 Molded Case Circuit Breaker Code
    3 Design Serial Number
    4 Frame Rating Current
    5 Breaking Capacity Characteristic Code
    6 Operation Mode Code:
    No code for manual operation, "P" for power operation, "Z" for rotary handle operation
    7 Number of Poles
    8 Trip Unit Type & Accessory Code
    9 Application Code:
    No code for distribution application, "2" for motor protection application
    10 Neutral Pole Type for 4-Pole Breakers

     product Display

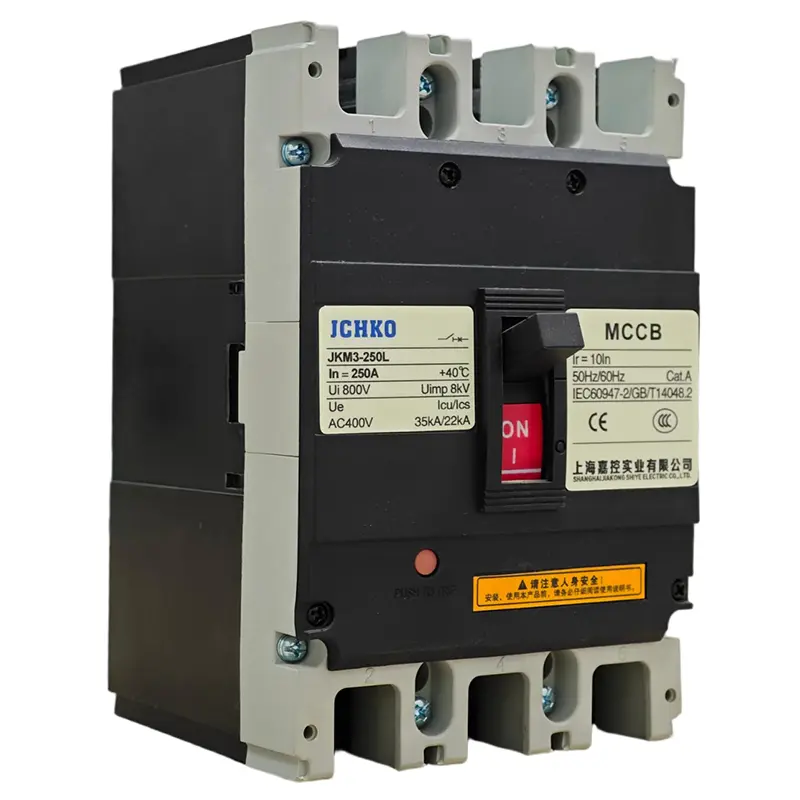

    SJKM3-MCCB-Moulded-Case-Circuit-Breaker-(1)

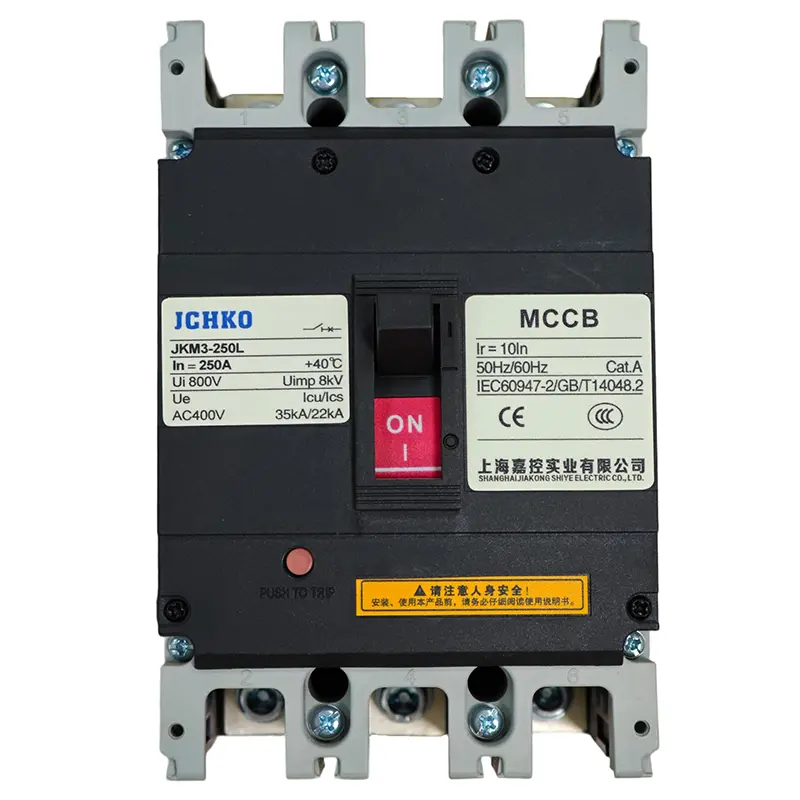

    SJKM3-MCCB-Moulded-Case-Circuit-Breaker-(2)

    Technical Parameters

    Frame Rated Current Inm (A) 63 100 250 400 630 800
    Model SJKM3-63L SJKM3-63M SJKM3-100L SJKM3-100M SJKM3-250L SJKM3-250M SJKM3-400L SJKM3-400M SJKM3-630L SJKM3-630M SJKM3-800L SJKM3-800M
    Number of Poles 3/4 3/4 3/4 3/4 3/4 3/4
    Rated Current In (A) 10/16/20/25/ 32/40/50/63 10/16/20/25/32/40/ 50/63/80/100 100/125/140/160/ 180/200/225/250 225/250/315/350/400 400/500/630 400/500/630/ 700/800
    Rated Insulation Voltage Ui (V) AC800 AC800 AC800 AC800 AC800 AC800
    Rated Impulse Withstand Voltage Uimp (V) 8000 8000 8000 8000 8000 8000
    Rated Operational Voltage Ue(V) 50Hz/60Hz AC400 AC400 AC400 AC690 AC400 AC400 AC690 AC400 AC400 AC690 AC400 AC400 AC690 AC400 AC400 AC690
    Arc Distance (mm) ≯50(0) ≯50(0) ≯50(0) ≯100(0) ≯100(0) ≯100(0)
    Rated Ultimate Short-circuit Breaking Capacity Icu (kA) AC400V 35 50 50 70 50 70 50 70 50 70 65 75
    AC690V 20 20 20 20 30
    Rated Service Short-circuit Breaking Capacity Ics (kA) AC400V 22 35 35 50 35 50 50 50 50 50 65 65
    AC690V 10 10 15 15 20
    Utilization Category A A A A A A
    Electrical Endurance (operations) AC400V 8000 8000 8000 7500 7500 7500
    AC690V 1500 1000 1000 1000 500
    Mechanical Endurance (operations) Maintenance-free 20000 20000 20000 10000 10000 10000
    With maintenance 40000 40000 40000 20000 20000 20000
    Overall Dimensions (mm) W (3P/4P) 75/100 92/122 107/142 150/198 182/240 210/280
    L 130 150 165 257 270 280
    H 60 92 90 106.5 110 115.5

    Note：

    1. According to GB14048.1, the term "Endurance" represents the probability of operation cycles completed by the electrical device before repair or replacement of components.

    2. Select zero-arc chutes with heights of: 4mm (for SJKM3-63L/M), 6.2mm (for SJKM3-100L/M), 7.5mm (for SJKM3-250L/M), 9.3mm (for SJKM3-400L/M and SJKM3-630L/M)，9.5mm (for SJKM3-800L/M) to achieve zero-arc (arc-free) performance.

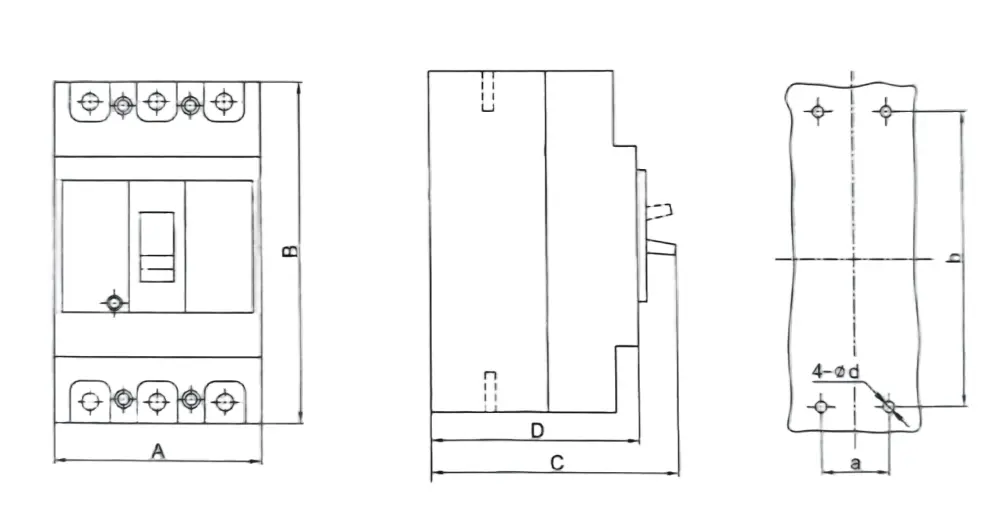

    Overall Dimensions and Installation Dimensions

    SJKM3-3
    Model Number of Poles Overall Dimensions Installation Dimensions
    A B C D
    L M L M L M L M a b Ad
    SJKM3-63L/M 3 75 130 81 90 60 70 25 111 3.5
    4 100 50
    SJKM3-100L/M 3 92 150 90 110 72 92 30 129 4.5
    4 122 60
    SJKM3-250L/M 3 107 165 110 127 90 107 35 126 4.5
    4 142 70
    SJKM3-400L/M 3 149 257 155 112 44 194 7
    4 198 94
    SJKM3-630L/M 3 182 270 160 117 58 200 7
    4 240 116
    SJKM3-800L/M 3 210 280 155 113 70 243 7
    4 280 140
