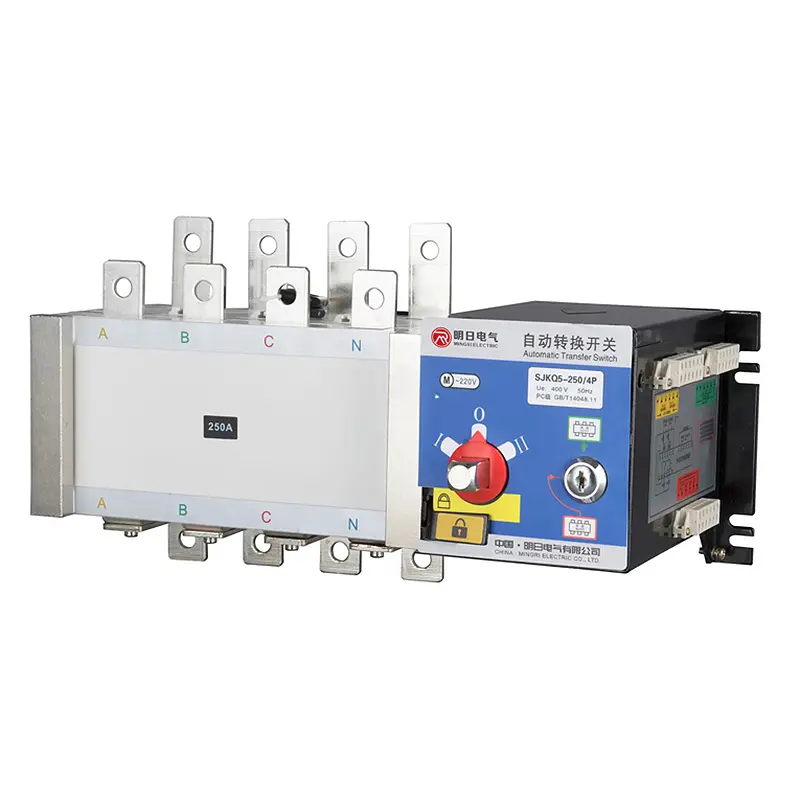

SJKQ5 ATS Dual Power Automatic Transfer Switch

The SJKQ5 ATS Dual Power Automatic Transfer Switch ensures uninterrupted power supply for critical systems, supporting 20A-3200A loads at AC400V with 500-800V insulation and 6-8kV impulse withstand. Engineered for high-demand applications, this dual power switch features rapid transfer times (0.6-2.4s) and multiple utilization categories (AC-33A/B/iB/CB). With short-circuit making capacity up to 67kA and control voltage options (DC24V-110V/AC220V), the SJKQ5 ATS operates efficiently across industrial and commercial environments. Its robust design includes low power consumption (55-600W) and compact weight (3.4-67kg), ensuring reliable performance in backup power systems requiring seamless source transition.

    Contact us
    product details

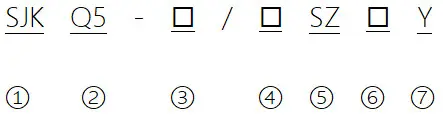

    Type Designation

    SJKQ5-Dual-Power-Automatic-Transfer-Switch-5
    1 Manufacturer Code
    2 PC-Class ATS
    3 Conventional Thermal Current (A)
    4 3: 3-Pole; 4: 4-Pole
    5 Automatic Transfer Switch
    6 ( ): B (Standard Type); Main-Backup,Auto-Transfer& Auto-Recovery
    Ⅰ:Utility-Utility, Auto-Transfer (Non-Recovery), Mutual Backup, Phase-Loss, Over/Undervoltage Protection
    Ⅱ: Utility-Utility, Auto-Transfer & Recovery, Phase-Loss, Over/Undervoltage Protection
    Ⅲ: Utility-Generator, Auto-Transfer & Recovery, Phase-Loss, Over/Undervoltage Protection
    7 "Y" indicates LCD display

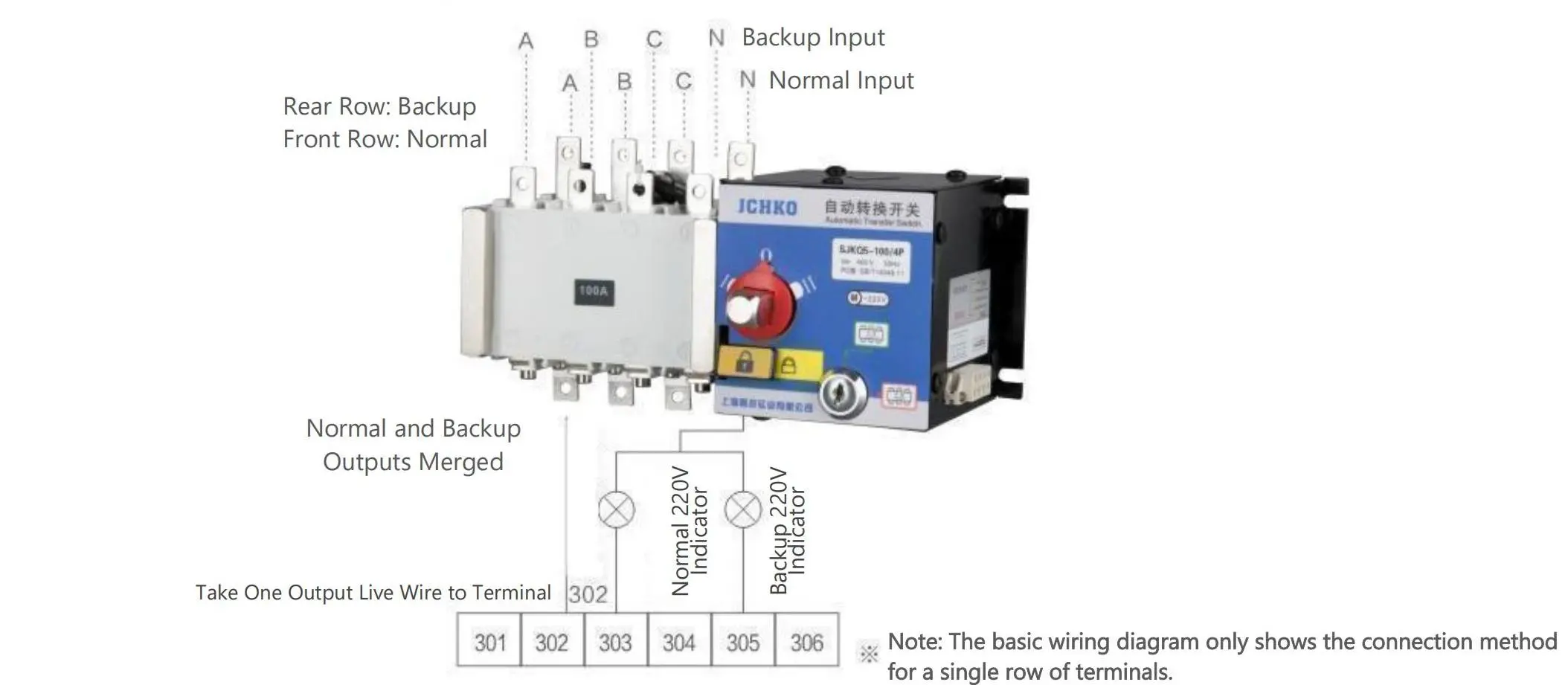

    SJKQ5 Basic Model Simplified Diagram:

    SJKQ5-2

    Technical Parameters

    Rated Current(Ith) 20A 25A 40A 60A 80A 100A 125A 160A 250A 400A 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A
    Rated Insulation Voltage (Ui) 500V 800V
    Rated Impulse Withstand Voltage (Uimp) 6KV 8KV
    Rated Operational Voltage (Ue) AC400V
    Rated Operational Current (Ie) AC-33A 20 25 40 60 80 100 125 160 250 400 630 800 1000 1250 1600 2000 2500 3200
    Utilization Category AC-33B AC-33iB AC-33CB
    Rated Making Capacity 10le
    Rated Short-Circuit Making Capacity 8kA 26kA 67kA
    Rated Conditional Short-Circuit Current (Is) 50kA 70kA 100kA 120kA
    Rated Short-Time Withstand Current (Is) 5kA 12.6kA 32kA
    Transfer time Ⅰ - Ⅱ or Ⅱ - Ⅰ 2s 0.6s 0.6s 1.2s 1.8s 2.4s
    Control Voltage DC24V,48V,110V AC220V
    Motor Power Consumption
    Rated Power Startup 300W 325W 355W 400W 440W 600W
    Normal Operation 55W 62W 74W 90W 98W 120W
    Weight (kg)-Class 4 3.4 3.4 3.4 3.4 3.4 3.4 6.0 6.0 7.6 15.8 16.8 36 36 37 38.6 55 61 67

     product Display

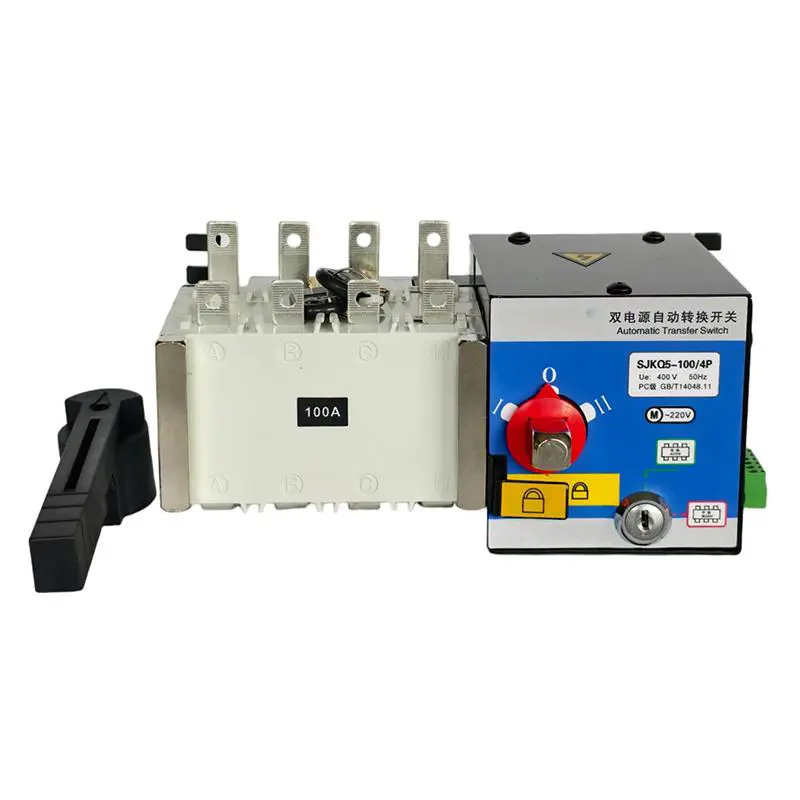

    SJKQ5-Dual-Power-Automatic-Transfer-Switch-(1)

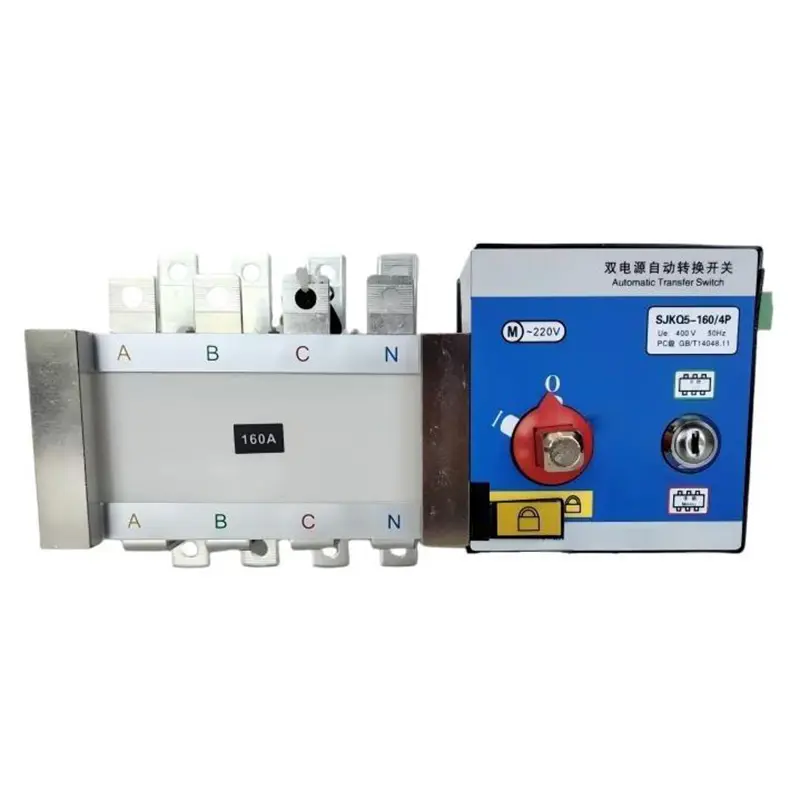

    SJKQ5-Dual-Power-Automatic-Transfer-Switch-(2)

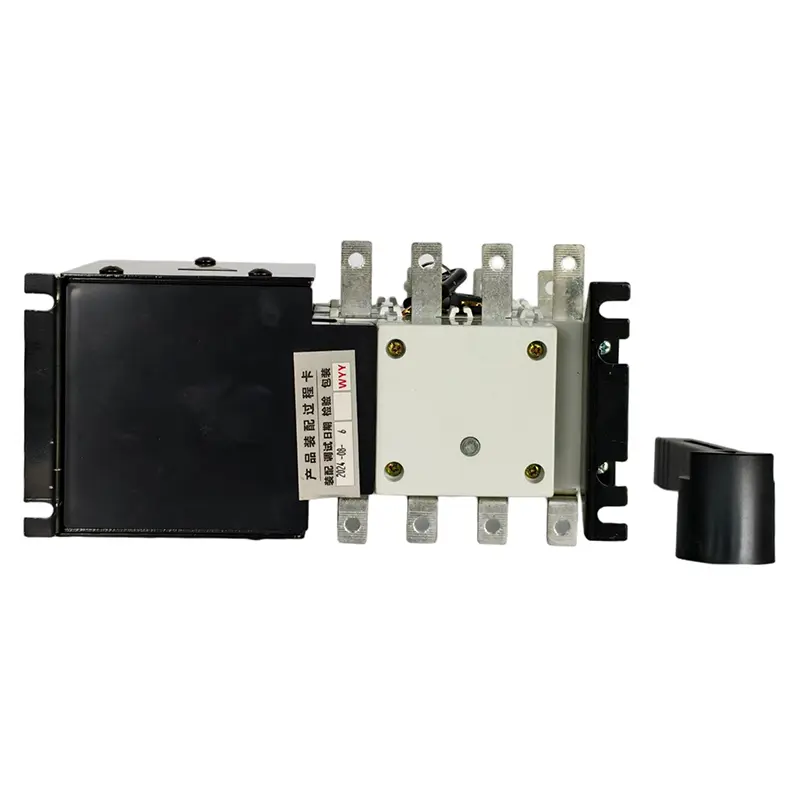

    SJKQ5-Dual-Power-Automatic-Transfer-Switch-(3)

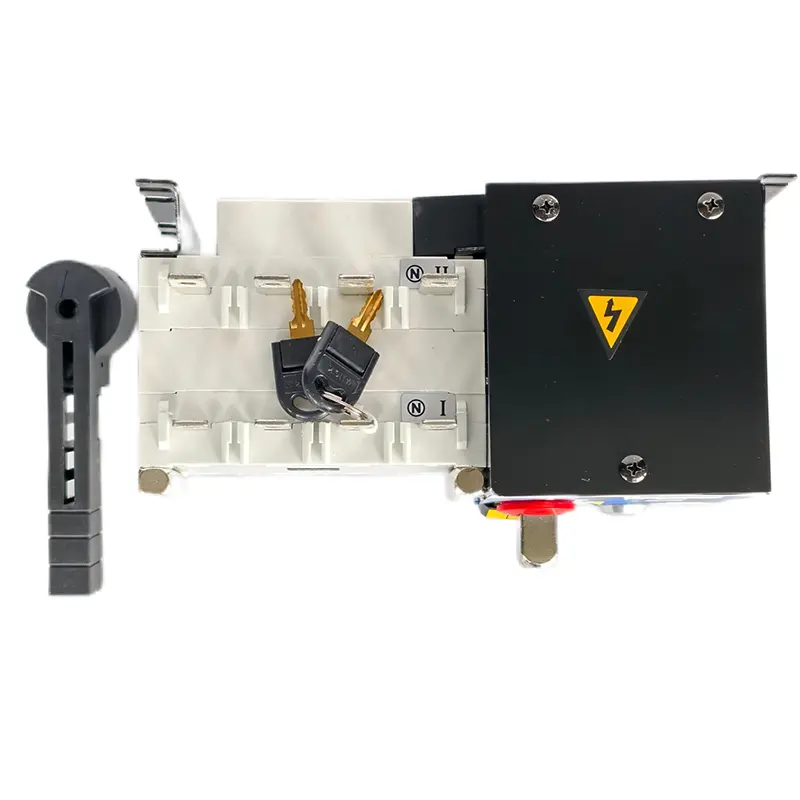

    SJKQ5-Dual-Power-Automatic-Transfer-Switch-(4)

    Outline and Installation Dimensions

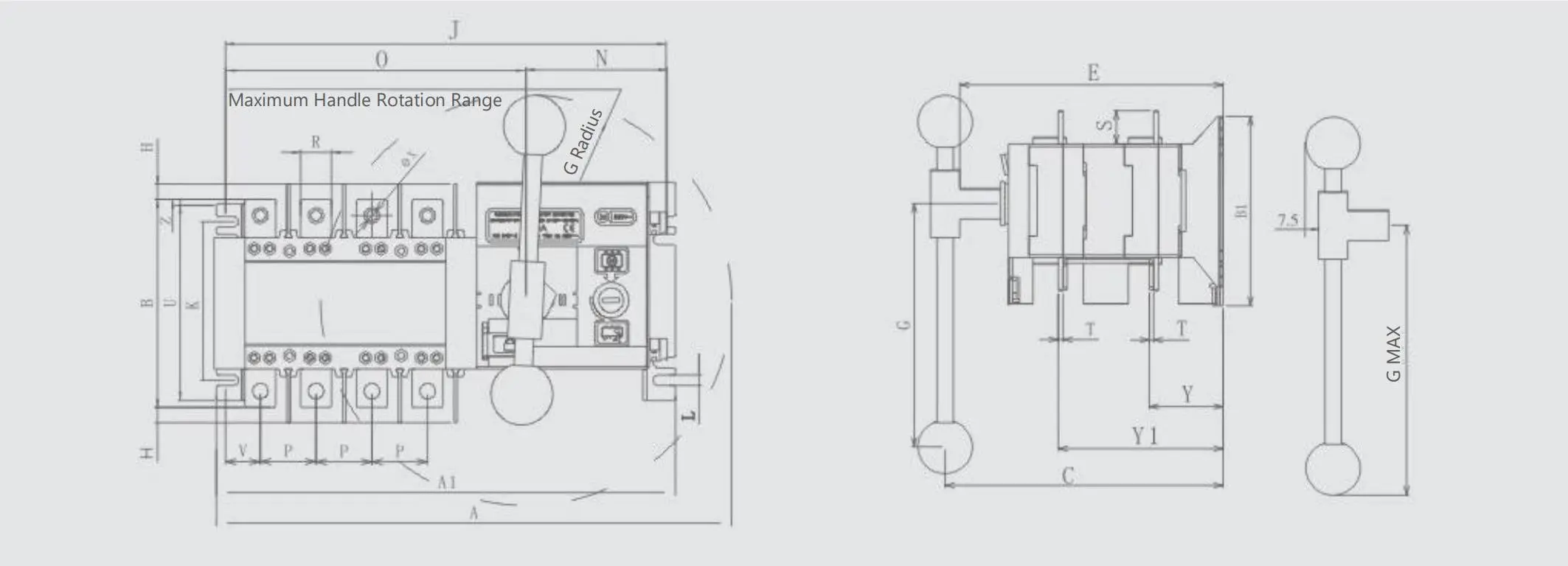

    ◆ Rated Current (16A-1600A) Installation Diagram

    SJKQ5-4

    ◆ Rated Current (16A-1600A) Installation Dimensions

    specification Overall dimension Switch installation Terminal wiring
    A A1 B B1 C E G J K L N P R S T U AX Y Y1
    100A/3 260 227 106 103 134 134  115  201 84 7 83.5 30 14 18 2.5 103 6 41.5 93
    100A/4 280  247  106  103  134  134  115  221  84  7  83.5  30  14  18  2.5  103  6  41.5  93
    160A/3 330  266  135  134  261  208  166  245.5  78/108 7  87  36  20  25  3.5  134  9  56  141
    160A/4 360  298  135  134  261  208  166  278  78/108 7  87  36  20  25  3.5  134  9  56  141
    250A/3 366  310 170  134  261 208  166 290 78/108 7  87  50 25  30 3.5  134 11 60  145
    250A/4 416  360  170  134  261  208  166  340  78/108 7  87  50  25  30  3.5  134  11  60  145
    400A/3 455  378.5  240  230  333  270  166  358.5  180  11  103.5  65  30  40  5  208  11  83  193
    400A/4 515  438.5  240  230  333  270  166  418.5  180  11  103.5  65  30  40  5  208  11  83  193
    630A/3 455  378.5  260  230  333  270  160  358.5  180  11  103.5  65  40  50  5  208  13  83  194
    630A/4 515  438.5  260  230  333  270  160  418.5  180  11  103.5  65  40  50  5  208  13  83  194
    800A/3 887  513  312  250  370  321  470  489  220  11  85  120  60  56  8  250  13  107  252
    800A/4 1007  633  312  250  370  321  470  609  220  11  85  120  60  56  5  250  13  107  252
    1000A/3 887  513  312  250  370  321  470  489  220  11  85  120  60  56  8  250  13  107  252
    1000A/4 1007  633  312  250  370  321  470  509  220  11  85  120  60  56  8  250  13  107  252
    1250A/3 887  513  338  250  370  321  470  489  220  11  85  120  80  56  8  250  13  107  252
    1250A/4 1007  633  338  250  370  321  470  609  220  11  85  120  80  56  8  250  13  107  252
    1600A/3 887  513  338  250  370  321  470  489  220  11  85  120  80  69  10  250  13  108  253
    1600A/4 1007  633  338  250  370  321  470  609  220  11  85  120  80  69  10  250  13  108  253

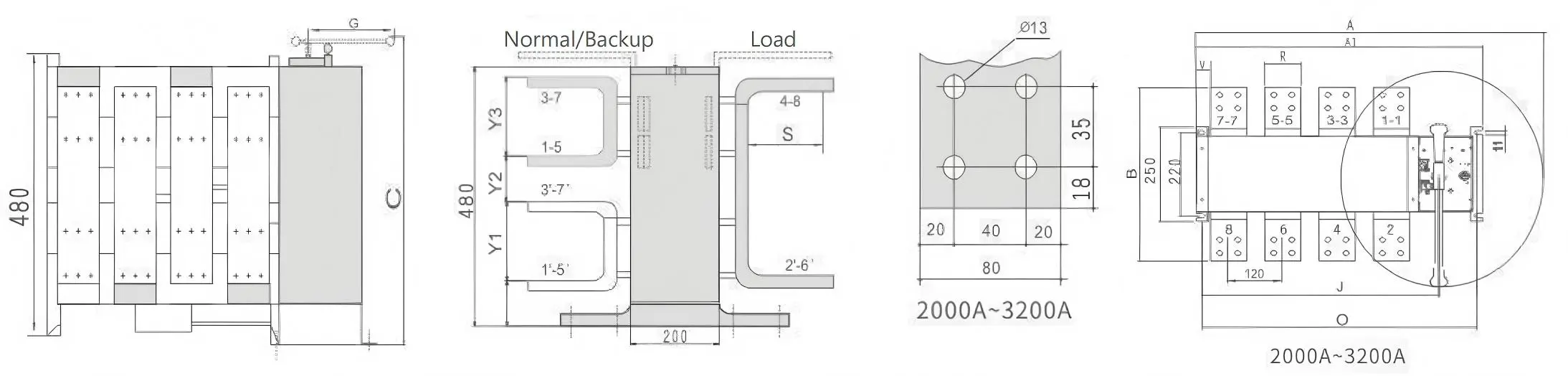

    ◆ 2000A-3200A Dual Input Single Output (2-in-1-out) Installation Diagram

    SJKQ5-6
    specification A A1 B C G J O R S T V Y1 Y2 Y3
    2000A/4P 1080  800  460  542  540  523  610  80  81  10  30  113  121  113
    2500A/4P 1080  800  460  542  540  523  610  80  81  15  30  118  116  118
    3200A/4P 1080  800  460  542  540  523  610  80  81  20  30  123  111  123
