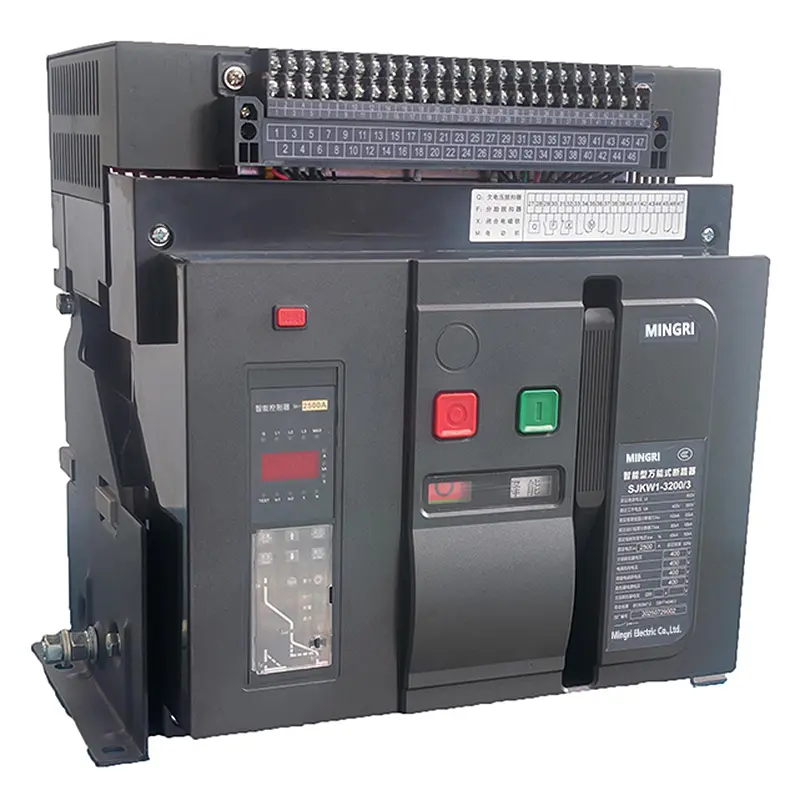

SJKW1-2000 intelligent universal circuit breaker
Type Designation
|
①rated current in scope of frame size |
|
|
1600 type |
200A,400A,630A,800A,1000A,1250A,1600A |
|
2000 type |
630A,800A,1000A,1250A,1600A,2000A |
|
3200 type |
2000A,2500A,3200A |
|
4000 type |
2500A,3200A,4000A |
|
6300 type |
4000A,5000A,6300A |
②Number of poles:3-default;4-4 pole
③Installation
Fixed type-horizontal,vertical
Drawout type-horizontal,vertical
④Intelligent controller
M type
2M type:digital display,over-current protection (overload,short delay,instantaneous),4P or 3P+N have earthing protection.
3M type:LCD display,over-current protection(overload,short delay,instantaneous),4P or 3P+N have earthing protection.
H type
2H type:communication function,digital display,over-current protection(overload,short delay,instantaneous),4P or 3P+N have earthing protection.
3H type:communication function,LCD display,over-current protection (overload,short delay,instantaneous),4Por 3P+N have earthing protection.
⑤Common use accessory
Shunt release-AC220V/230V,AC380V/400V,DC220V,DC110V
Undervoltage release-AC220V/230VAC380V/400V,it is classified to instantaneous type and time-delay type.
Closing electromagnet-AC220V/230V,AC380V/400V,DC220V,DC110V
Motor-driven energy-storage mechanism-AC220V/230V,AC380V/400V,DC220V,DC110V
Auxiliary contact-4a4b,2a6b,3a3bNote:a-normal open,b-normal close
⑥Optional accessory
Mechanical interlock;
One circuit breaker(1lock+1key)
Two circuit breaker(steel cable interlock,connecting rod interlock,2lock+1key)
Three circuit breaker(3lock+2keys,connecting rod interlock)
Automatic power transfer system
Current transformer connected with neutral lead

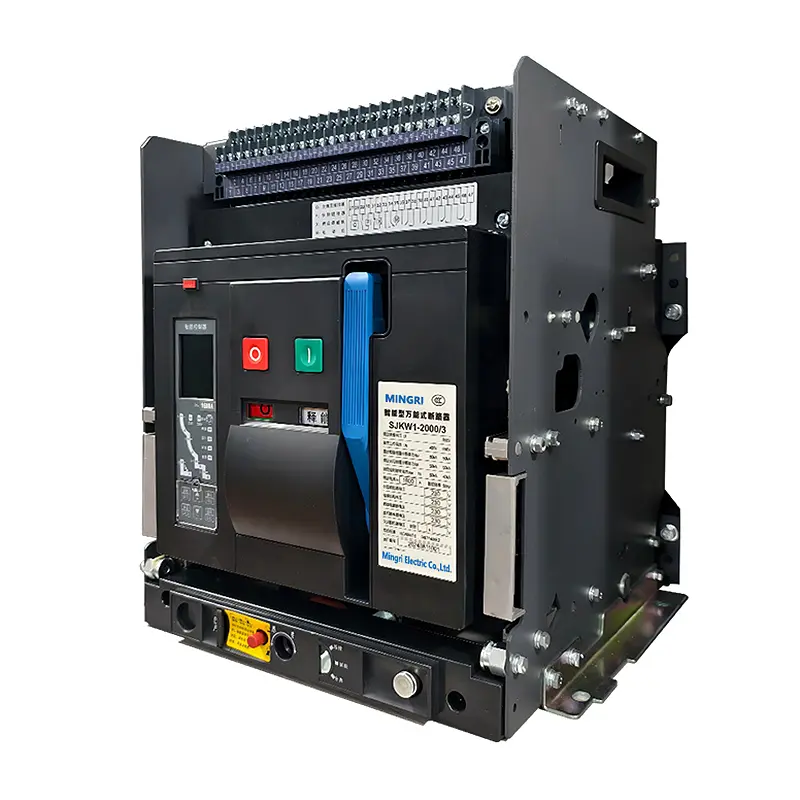

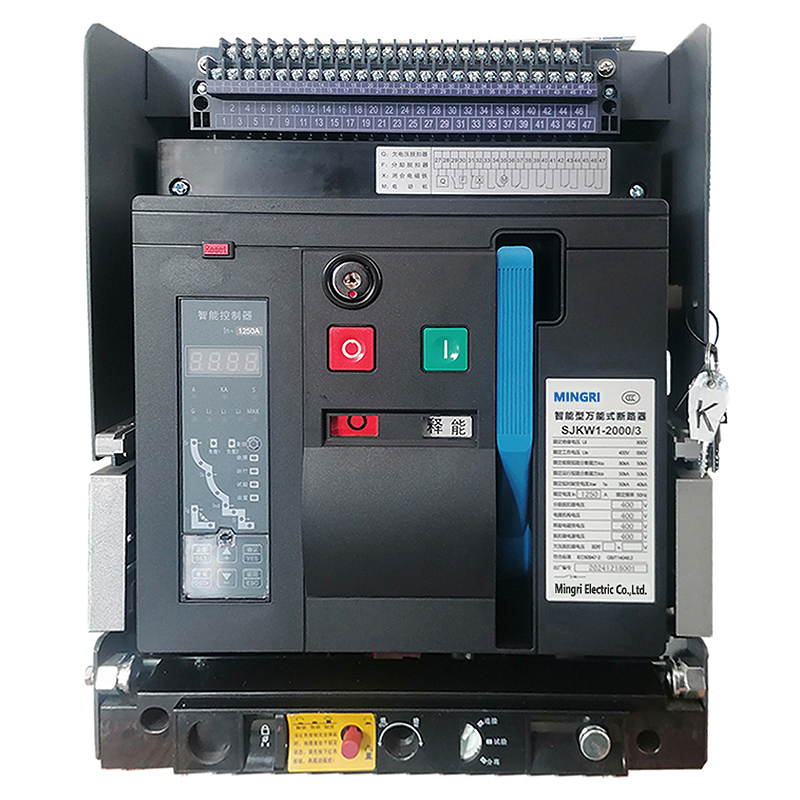

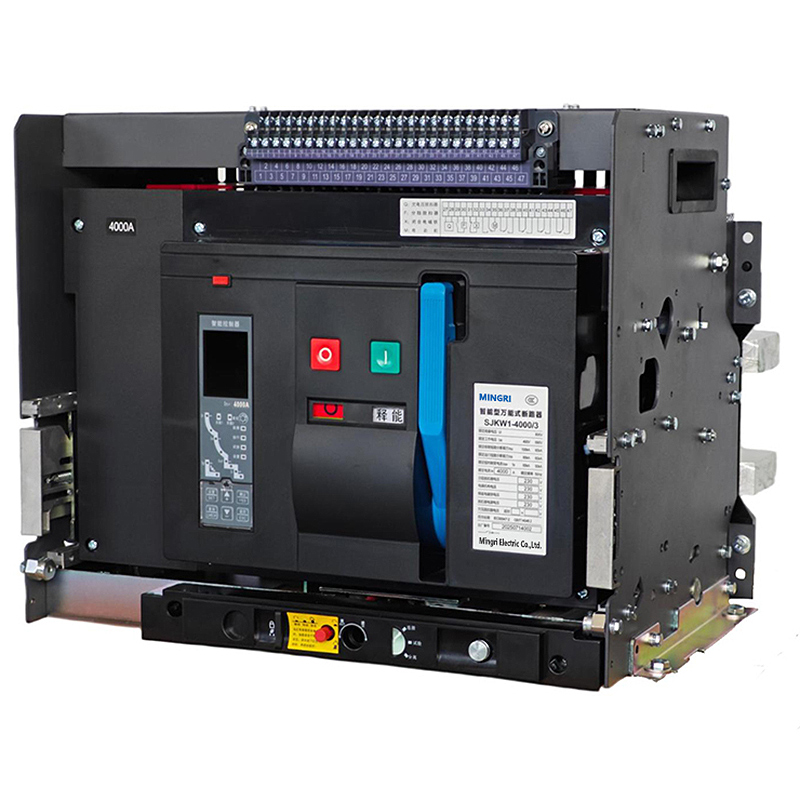

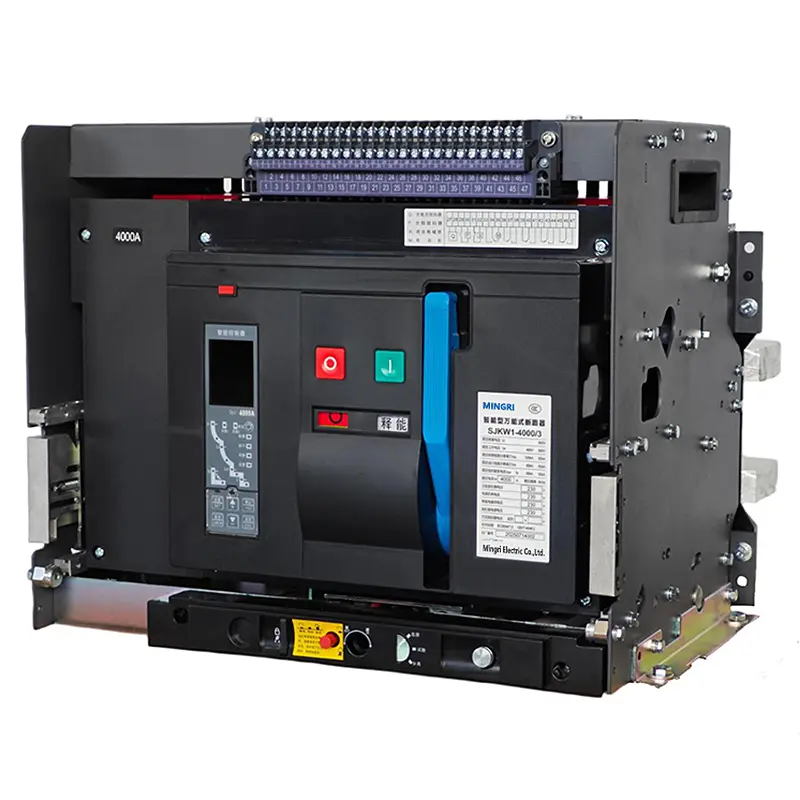

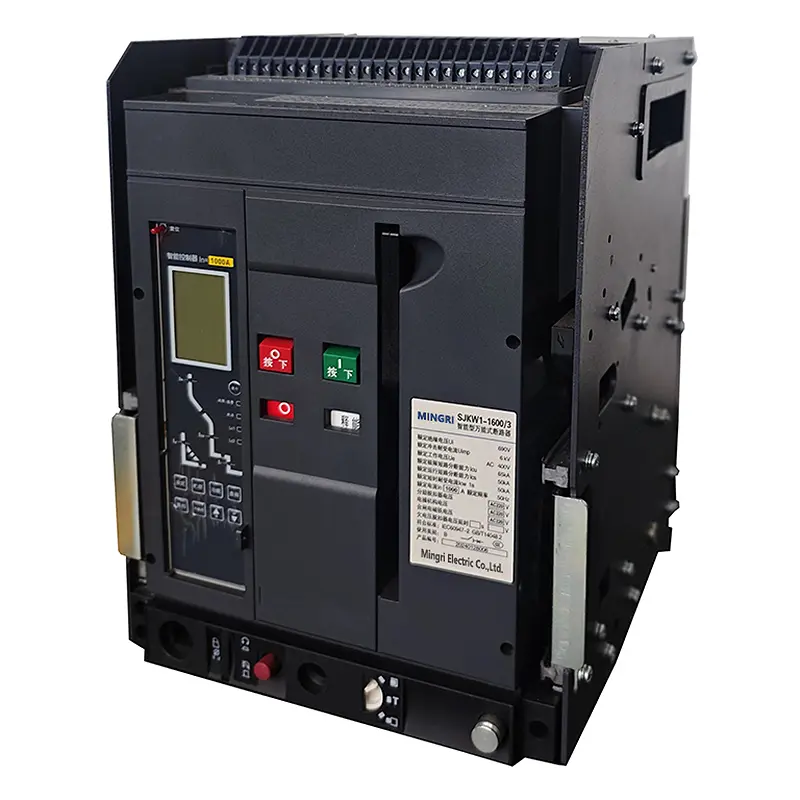

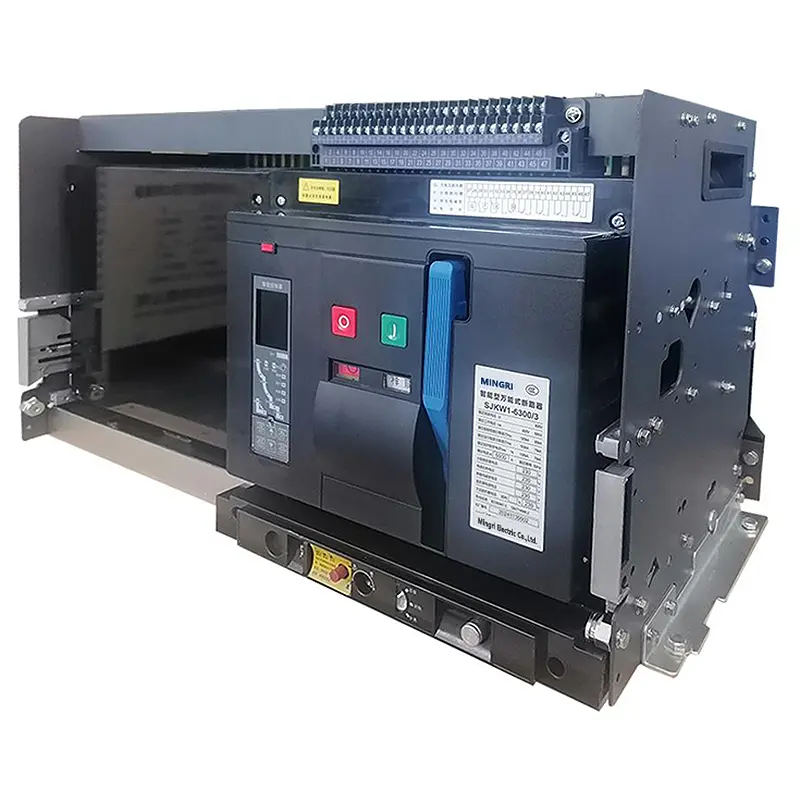

product Display
Technical Parameters
|
Rated current of frame (Inm) |
|
1600 |
2000 |
3200 |
4000 |
6300 |
|
Ue(V) |
AC400V AC690V |
AC400V AC690V |
AC400V AC690V |
AC400V AC690V |
AC400V AC690V |
|
|
Ui(V) |
1000 |
1000 |
1000 |
1000 |
1000 |
|
|
Rated Frequency(HZ) |
50HZ |
50HZ |
50HZ |
50HZ |
50HZ |
|
|
Rated ultimate short-circuit breaking capacity (Icu, kA)O-CO |
400V |
65 |
85 |
100 |
100 |
120 |
|
690V |
50 |
50 |
65 |
65 |
80 |
|
|
Rated short-circuit making capacity nxIcu(ka)/cosφ |
400V |
143 |
176/0.2 |
220/0.2 |
220/0.2 |
264/0.2 |
|
690V |
105 |
105/0.25 |
143/0.2 |
143/0.2 |
187/0.2 |
|
|
Rated service short-circuit breaking capacity (Ics, kA) O-CO-CO |
400V |
55 |
50 |
65 |
65 |
80 |
|
690V |
42 |
40 |
50 |
50 |
70 |
|
|
Rated short-time withstand current Ic( kA) 1s,Time delay 0.4s, O-CO |
400V |
55 |
50 |
65 |
65/80（MCR) |
85/100（MCR) |
|
690V |
42 |
40 |
50 |
50/65（MCR) |
65/75（MCR) |

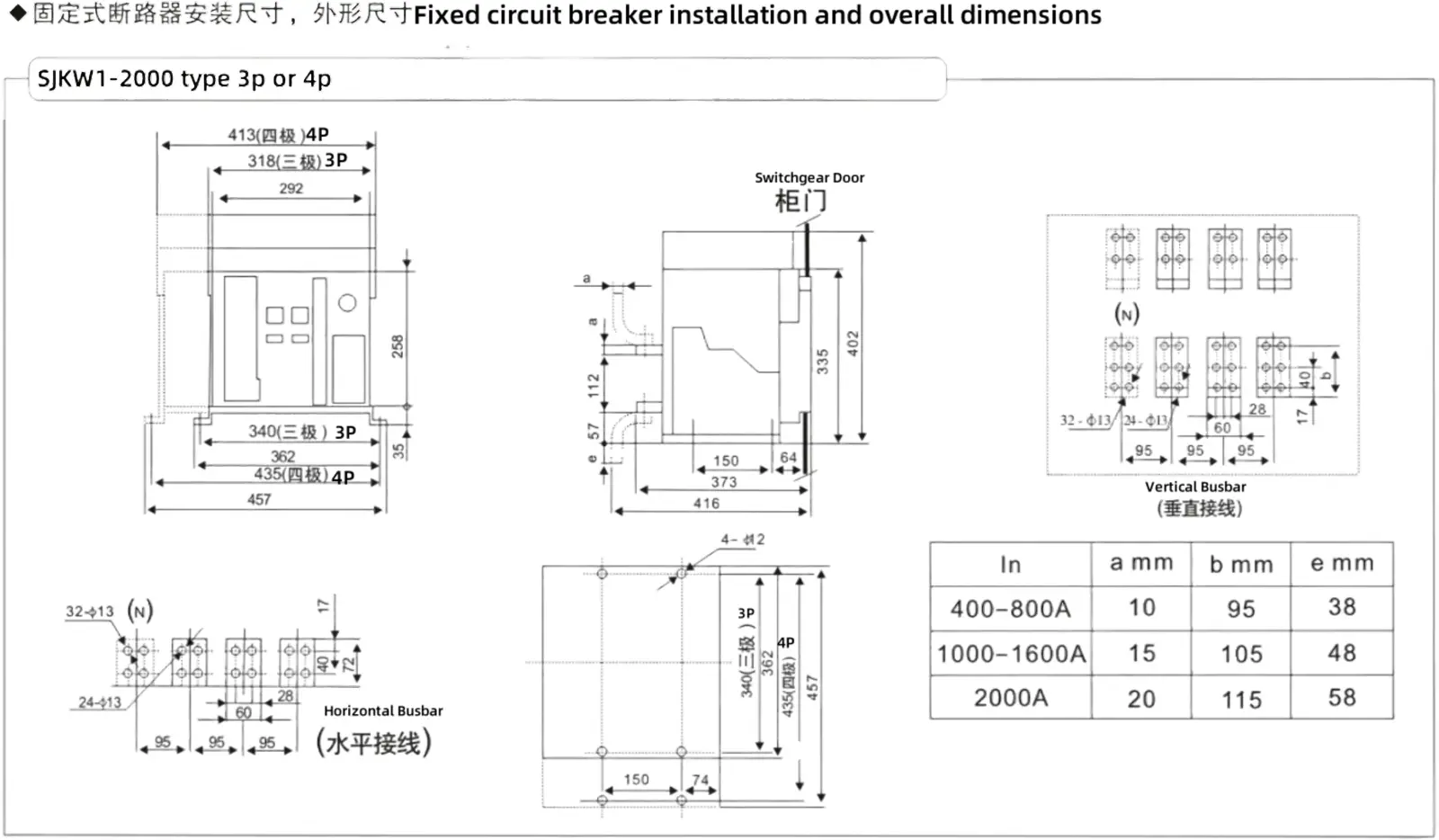

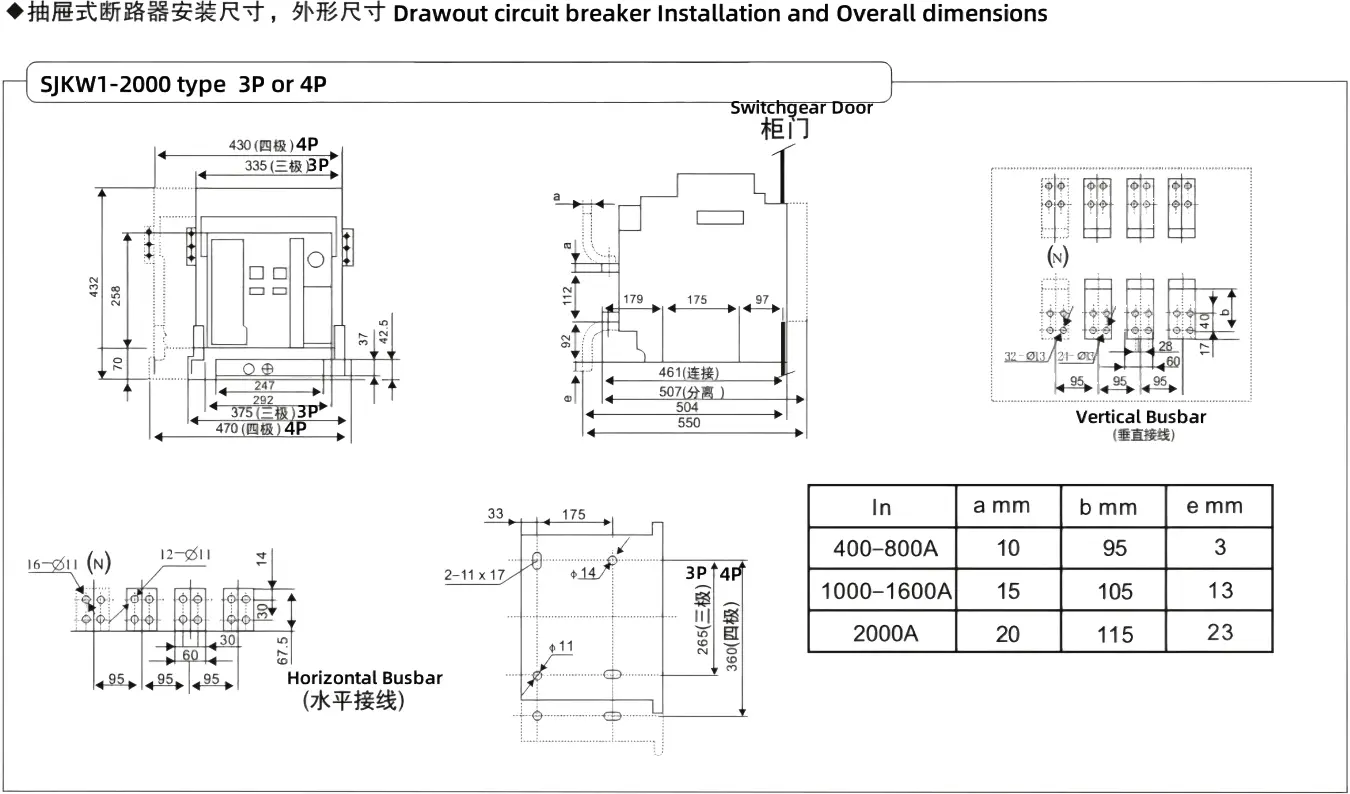

Installation and Overall Dimensions
