XGN15-24 Medium Voltage Switchgear Sf6 Insulated Ring Main Unit

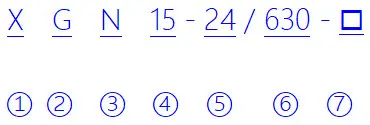

Type Designation
| 1 | Box-type Construction |
| 2 | Fixed Type |
| 3 | Indoor Type |
| 4 | Design Serial Number |
| 5 | Rated Voltage kV |
| 6 | Rated Current A |
| 7 | I: FLN36-12Load Switch; Ⅱ: FLN48-12Load Switch |
Technical Parameters
| No. | Parameter | Unit | Value |
| 1 | Rated Voltage | kV | 12 |
| 2 | Rated Frequency | Hz | 50 |
| 3 | Main Busbar Rated Current/Maximum Fuse Rating | A | 630,125 |
| 4 | Main Circuit &Earth Circuit Rated Short-time Withstand Current | kA/S | 203 |
| 5 | Main Circuit &Earth Circuit Rated Peak Withstand Current | kA | 50 |
| 6 | Main Circuit &Earth Circuit Rated Short-circuit Making Current | kA | 50 |
| 7 | Load Switch Full-capacity Breaking Operations | operations | 100 |
| 8 | Fuse Breaking Capacity | kA | 31.5,40 |
| 9 | Rated Closed-loop Breaking Current | A | 630 |
| 10 | Rated Transfer Current | A | 1600 |
| 11 | Mechanical Endurance | operations | 2000 |
| 12 | 1-minute Power Frequency Withstand Voltage (phase-to-phase/earth/isolation) | kV | 4,248 |
| 13 | Lightning Impulse Withstand Voltage (phase-to-phase/earth/isolation) | kV | 7,585 |
| 14 | Secondary Circuit 1-minute Power Frequency Withstand Voltage | kV | 2 |
| 15 | Protection Class | IP3X |

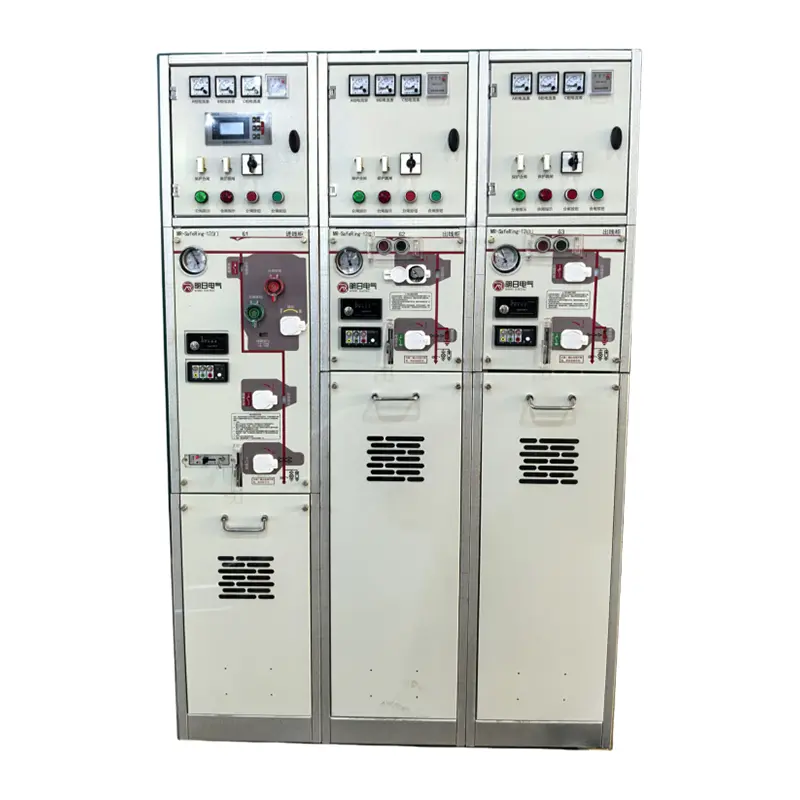

product Display
Environmental conditions
◇ Altitude: no more than 2000m;
◇ Ambient temperature: minimum temperature - 25°C; The highest temperature is+40℃;
◇ Ambient humidity: daily average value shall not exceed 95%; The monthly average value shall not exceed 90%;
◇ Seismic capacity: Grade 8;
◇ The surrounding air is free of explosive and corrosive gases, and the installation site is free of violent vibration and impact.

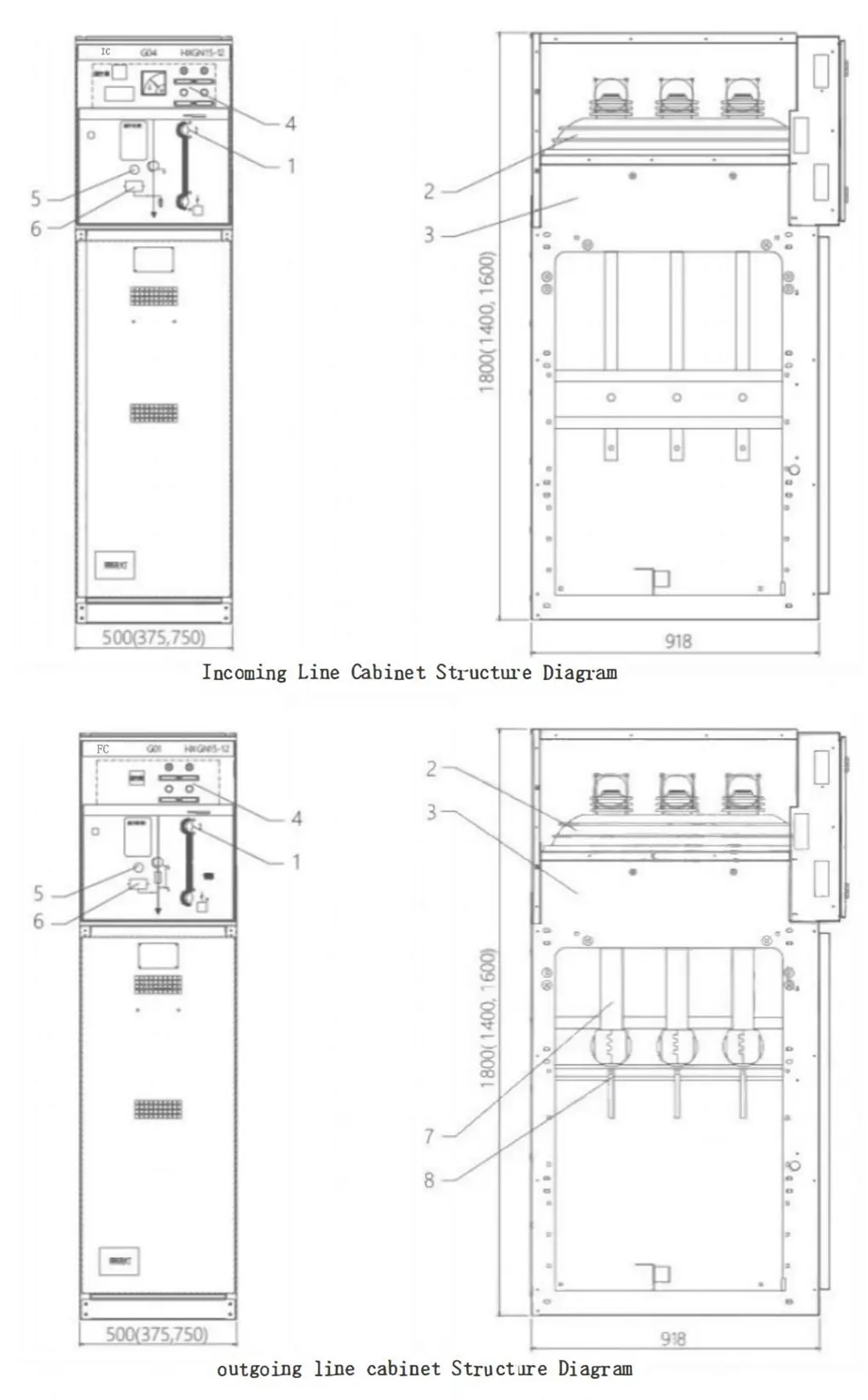

Schematic Diagram
| 1.Operating Mechanism | 4.Instrument Compartment | 7.Fuse |
| 2.Load Switch | 5.SF6 Voltage Meter | 8.Lower Grouding Switch |
| 3.Cabinet Body | 6.High-voltage Live Display |

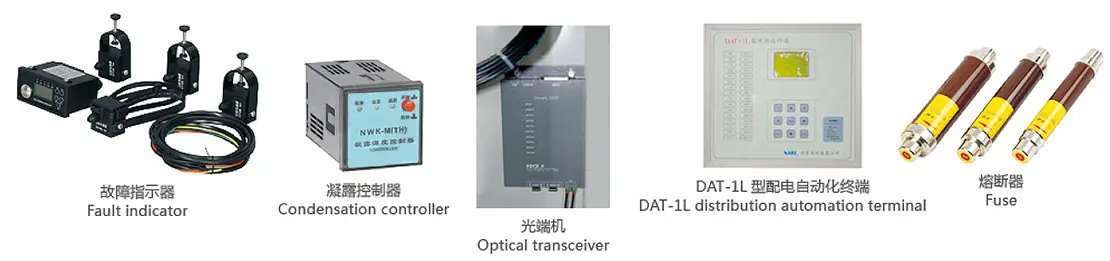

Auxiliary equipment
● Fault Indicator: The DJD-1 short-circuit grounding fault indicator uses logic circuits for over-current alerts and manual reset, with sensors on cables and a display unit for quick fault detection.
● Condensation Controller: This device monitors temperature/humidity in real-time, activating heaters at 85%RH to prevent condensation (rated power: 75-100W).
● FTU & Communication: The DAT-1L automation terminal enables SCADA integration with 48 remote signaling channels, self-diagnosis, and multi-protocol support (IEC101, MODBUS, etc.).
● Current Limiting Fuse: Designed for 24kV/50Hz systems (292mm length), it protects indoor switchgear from overcurrent faults.
